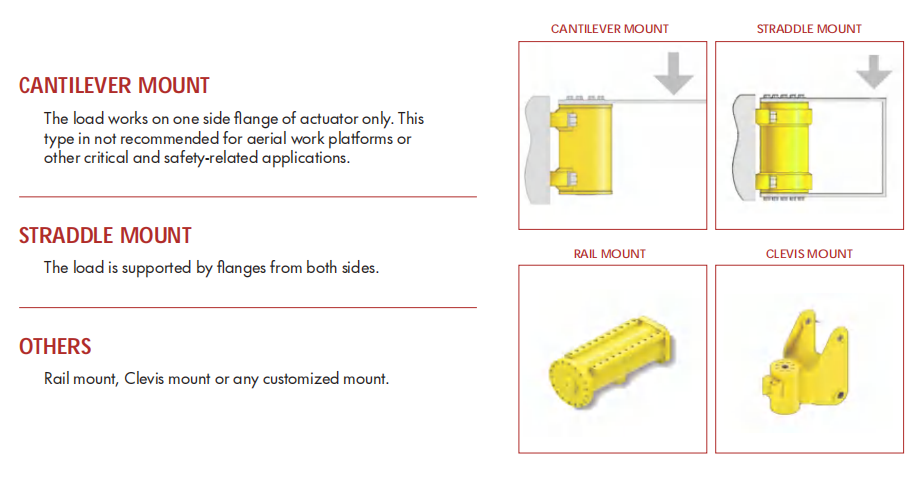

| Rotation | 180°, 360° |
| Output Mode | Front Flange, Double Flanges |
| Mounting | Front Flange, Rear flanges |
| Drive Torque Nm@21Mpa | 4700 |
| Holding Torque Nm@21Mpa | 12000 |
| Max Cantilever Moment Capacity Nm | 11900 |
| Max Straddle Moment Capacity 180° Nm | 30800 |
| Max Straddle Moment Capacity 360° Nm | 45400 |
| Radial Capacity Kg | 3600 |
| Axial Capacity Kg | 2700 |
| Displacement 180° cc | 1180 |
| Displacement 360° cc | 2360 |
| Weight 180° Kg | 72.5 |
| Weight 360° Kg | 100 |

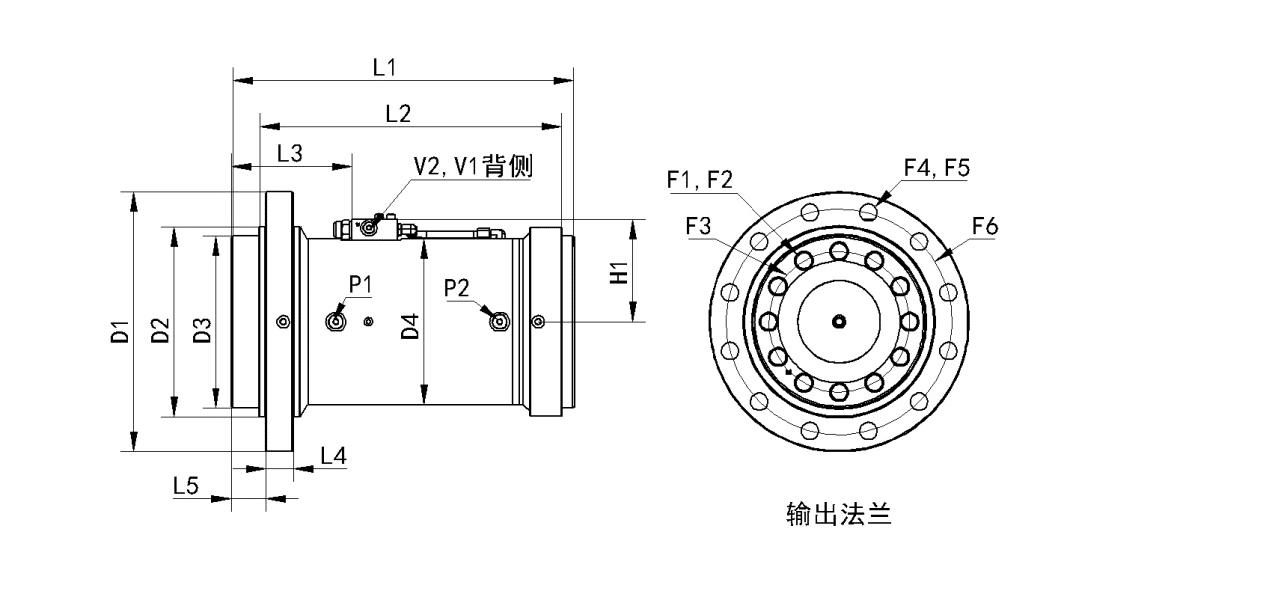

| D1 Mounting Flange Dia mm | 280 |
| D2 Pilot Dia mm | 205 |
| D3 Shaft And Endcap Flange Dia mm | 183 |
| D4 Housing Dia mm | 178 |
| F1 Mounting Hole Of Shaft Flange mm | M20×2.5 |
| F2 Qty of Shaft Flange Mounting Holes | 12 |
| F3 Bolt Circle Dia of Shaft Flange mm | 150 |
| F4 Mounting Hole Of Endcap Flange mm | M16×2 |
| F5 Qty of Endcap Flange Mounting Hole | 12 |
| F6 Bolt Circle Diameter of Endcap Flange | 245 |
| H1 Centerline To Valve Top mm | 118 |
| L1 Overall Length 180° mm | 365 |
| L1 Overall Length 360° mm | 538 |
| L2 Length Without Rotating Flange 180° mm | 323 |
| L2 Length Without Rotating Flange 360° mm | 496 |
| L3 Shaft Flange To Counterbalance Valve 180° mm | 143 |
| L3 Shaft Flange To Counterbalance Valve 360° mm | 197 |
| L4 Mounting Flange Thickness mm | 31 |
| L5 Shaft Flange To Mounting Flange Face mm | 35 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4. |
| V1, V2 Port | ISO-11926/SAE series, size 7/16. |
| *Specification charts are for general reference only, please consult drawing for actual values and tolerances. | |

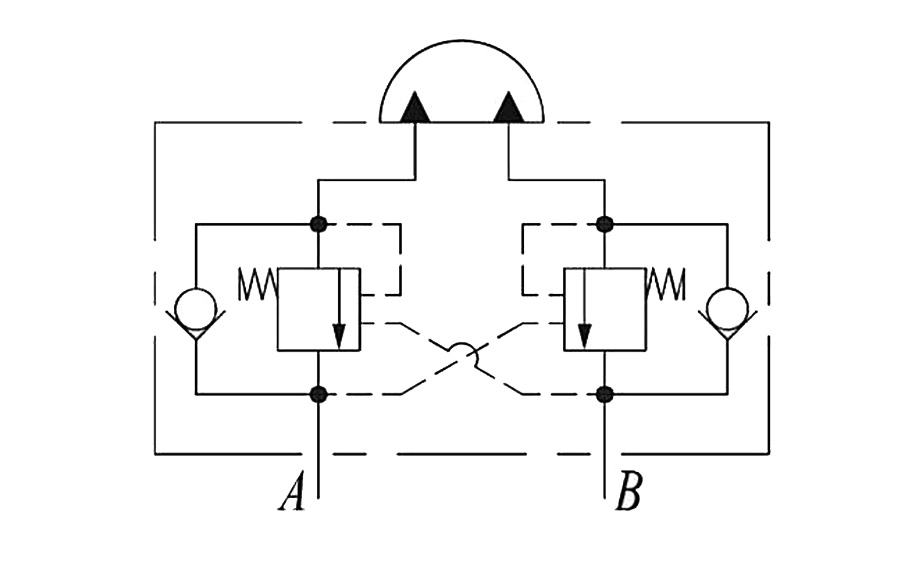

The counterbalance valve protects rotation in the event of a hydraulic line failure and protect the actuator against excessive torque loading. Hydraulic Schematic of Optional Counterbalance Valve. The counterbalance valve is optional on-demand. Top brands are available for different requests.

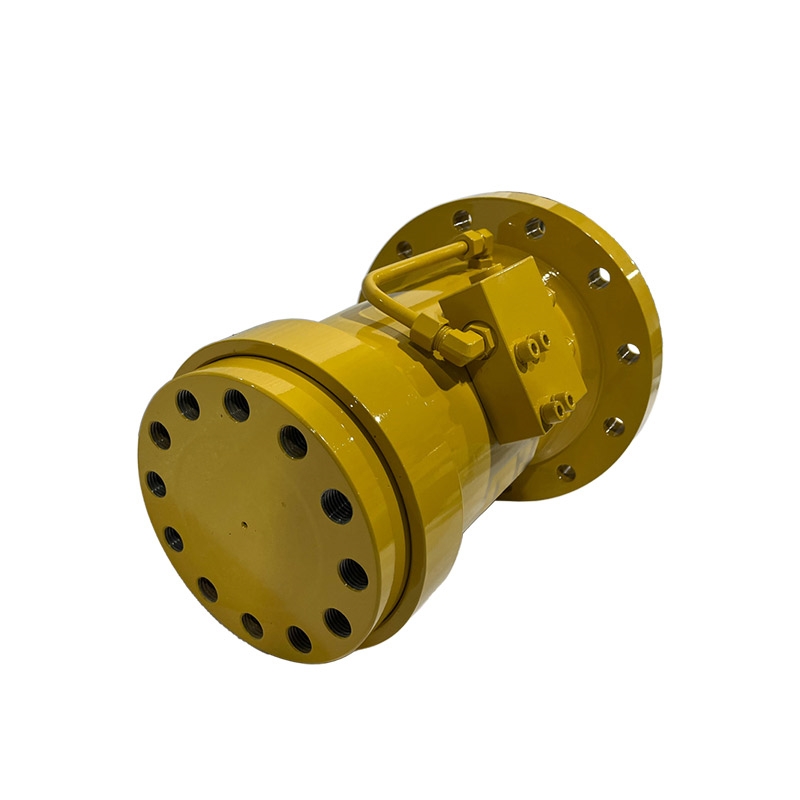

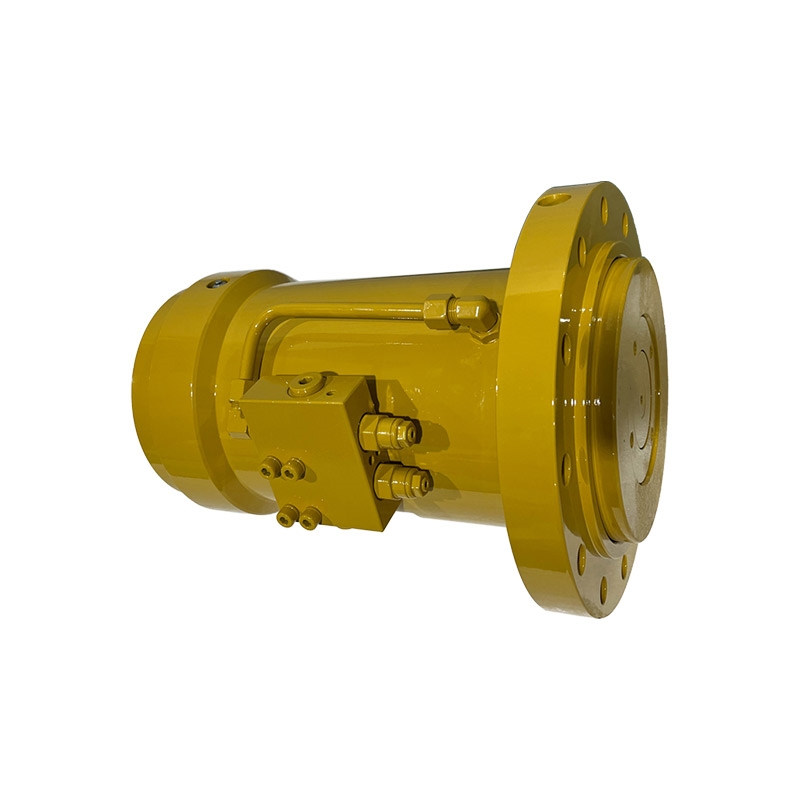

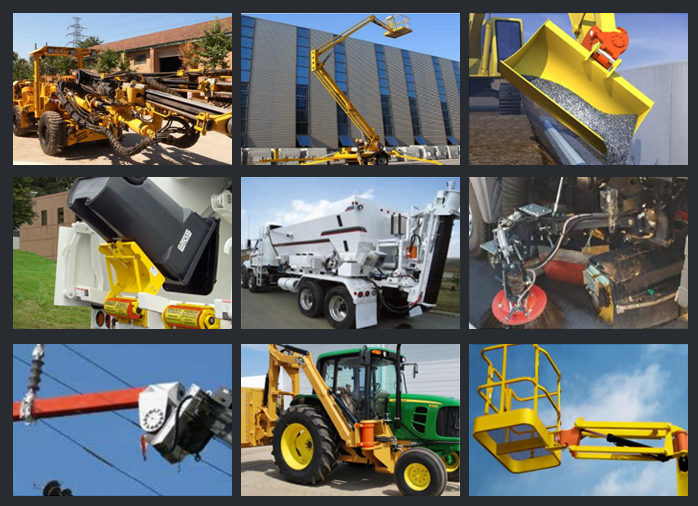

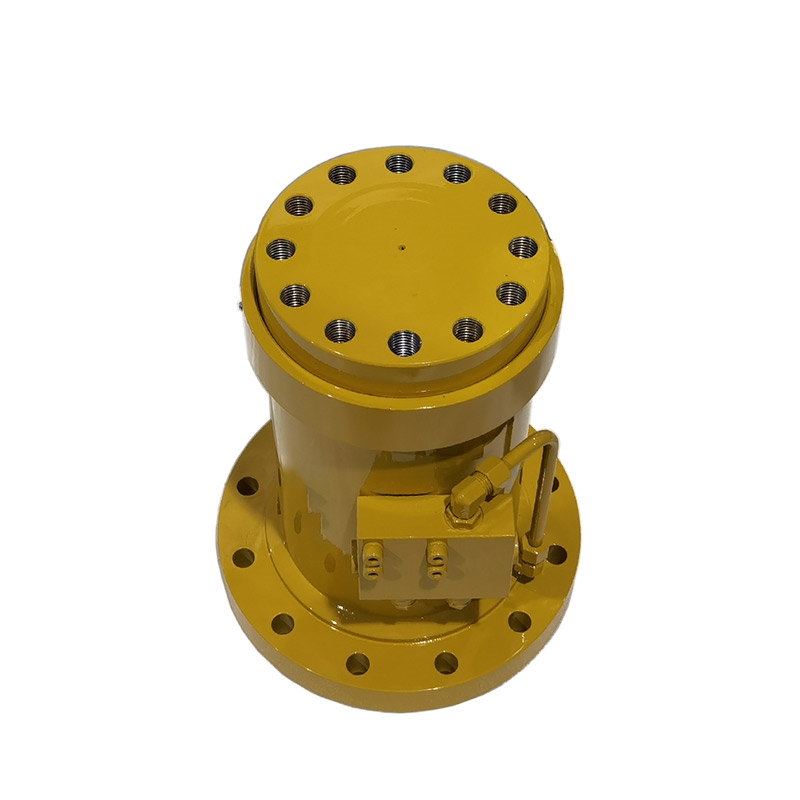

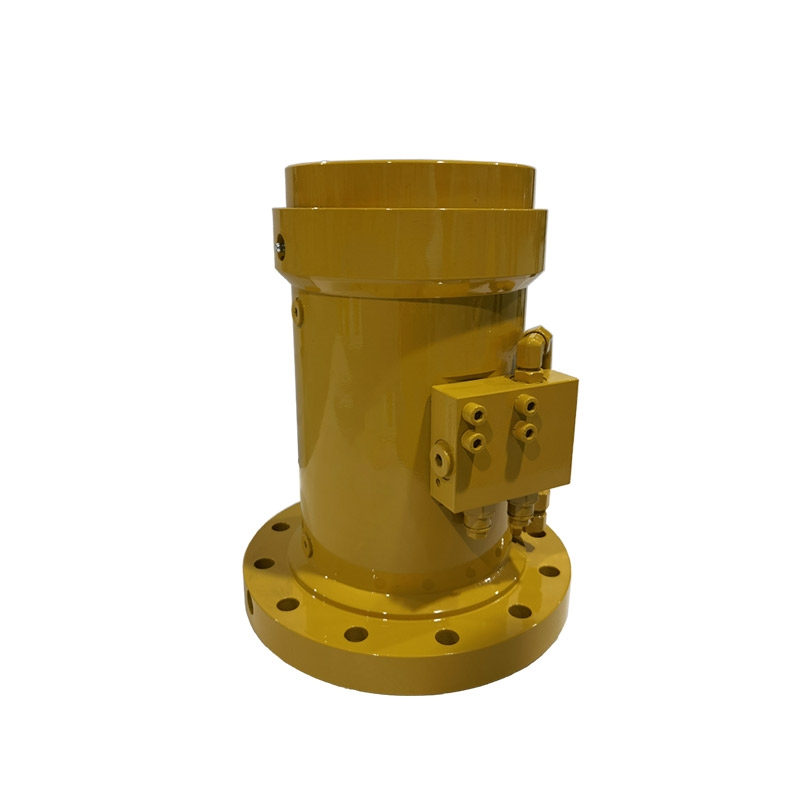

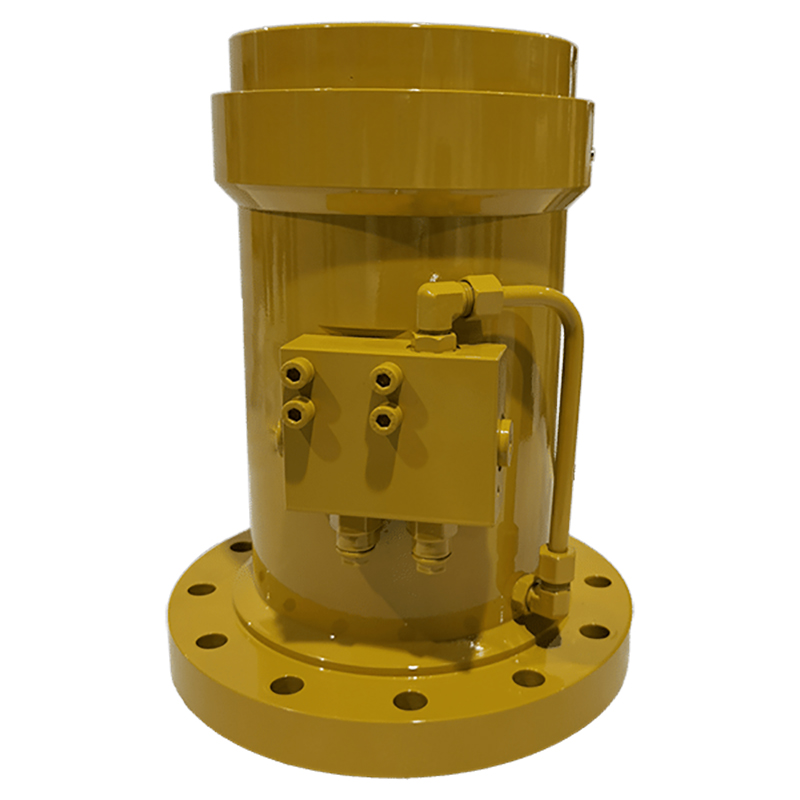

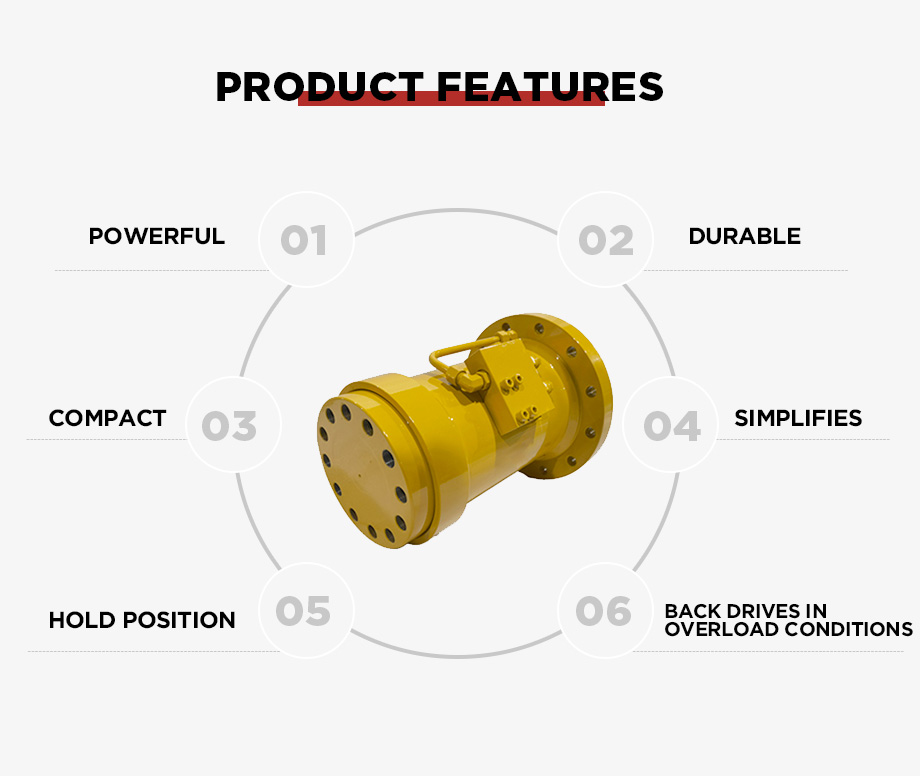

The WL30 Series hydraulic rotary actuator is designed and made for harsh environment. It is heavy duty helical rotary device, and torque output from 1900Nm to 24000Nm at 21Mpa. The WL30 Series features rear flange and front flange mounting type, with rotation of 180 degree and 360 degree. It is wide used for fields of agriculture, Construction, Energy, Marine, Material Handling, Military, Mining, Truck/Trailer, etc.
Torque Versus Hydraulic Pressure and Loads: The driving torque and holding torque are approximately linear with hydraulic pressure. As moment loads increase, drive torque may be reduced by up to 15%.
Standard Valve for L30-17 and L30-25 180 Degree Models: Manufactured from aluminum, the valve blocks are bolted to a flat mounting pad on the actuator housing. Three bolts secure the valve block to the actuator. See specification pages for valve location. The pilot ratio is 3:1. The valves are set to relieve at 3300 psi ± 300 psi (228 bar ± 21 bar).
