| Rotation | 180°, 360° |
| Output Mode | Front Flange |
| Mounting | Flange |
| Drive Torque Nm @ 21Mpa | 1000 |
| Holding Torque Nm @ 21Mpa | 3800 |
| Max Cantilever Moment Capacity Nm | 5600 |
| Radial Capacity Kg | 3600 |
| Axial Capacity Kg | 3600 |
| Displacement 180° cc | 365 |
| Displacement 360° cc | 733 |
| Weight 180° Kg | 26 |
| Weight 360° Kg | 35 |
| D1 Mounting Flange Dia mm | 127 |
| D2 Housing Dia mm | 170 |
| F1 Mounting Hole mm | M12×1.75 |
| F2 Qty of Mounting Holes | 12 |
| F3 Bolt Circle Dia of Shaft Flange mm | 102 |
| F4 Mounting Hole mm | M12×1.75 |
| F5 Qty of Mounting Holes | 12 |
| F6 Bolt Circle Dia of Endcap Flange mm | 151 |
| F7 Shaft Through-Hole Dia mm | 35.7 |
| H1 Height mm | 115 |
| L1 Length 180° mm | 184 |
| L1 Length 360° mm | 258 |
| L2 Length 180° mm | 182 |
| L2 Length 360° mm | 256 |
| L3 Distance To Valve 180° mm | 27.9 |
| L3 Distance To Valve 360° mm | 42.7 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4. |
| V1, V2 Port | ISO-11926/SAE series, size 7/16. |
*Specification charts are for general reference only, please consult drawing for actual values and tolerances.

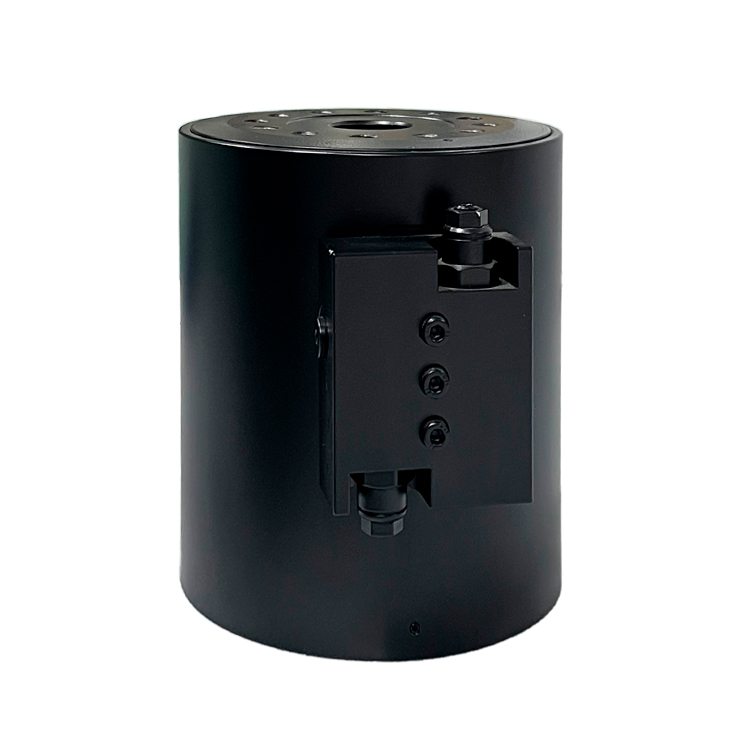

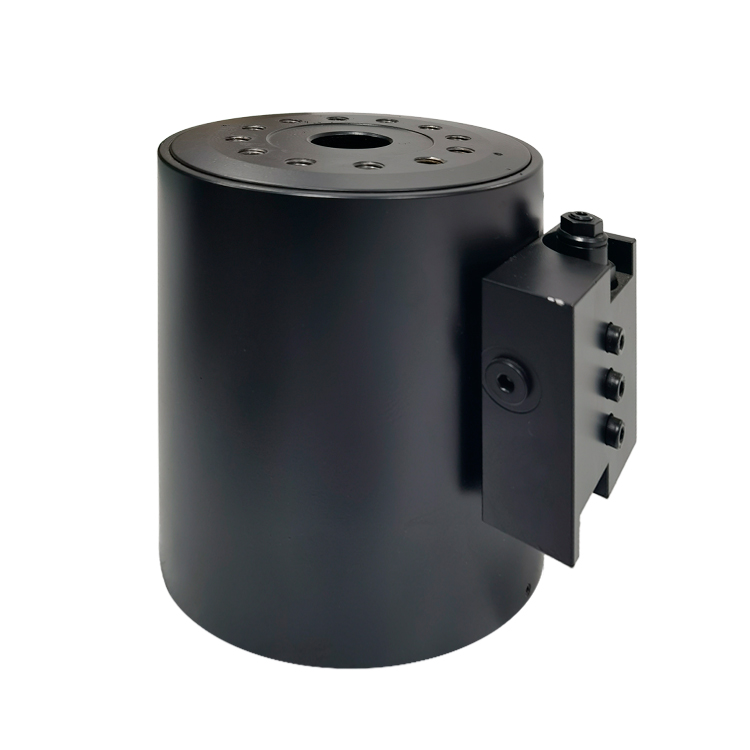

The counterbalance valve protects rotation in the event of a hydraulic line failure and protect the actuator against excessive torque loading. Hydraulic Schematic of Optional Counterbalance Valve: The counterbalance valve is optional on-demand. SUN brands or other top brands are available for different requests.

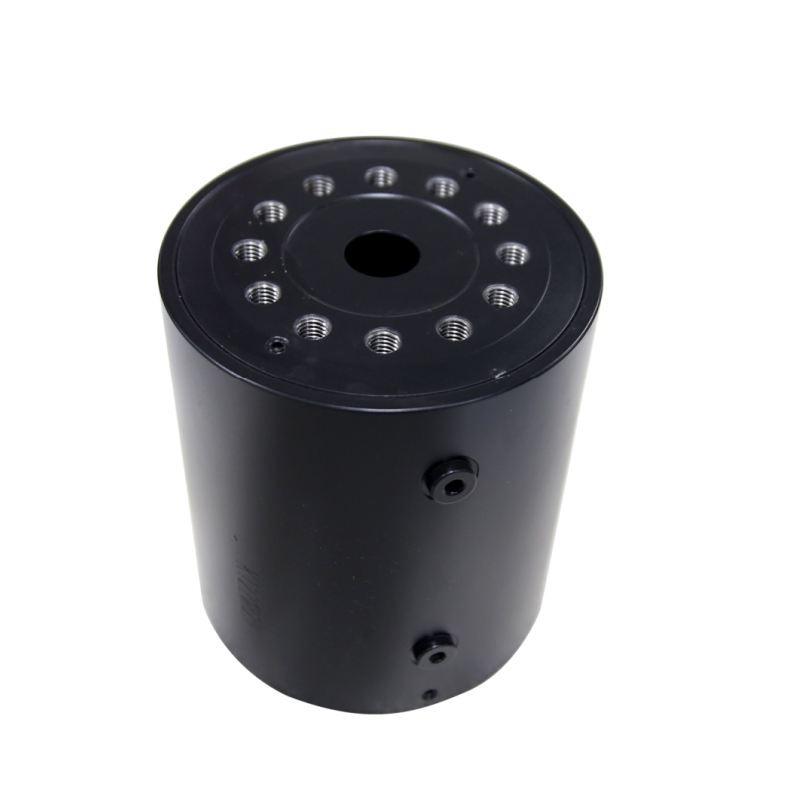

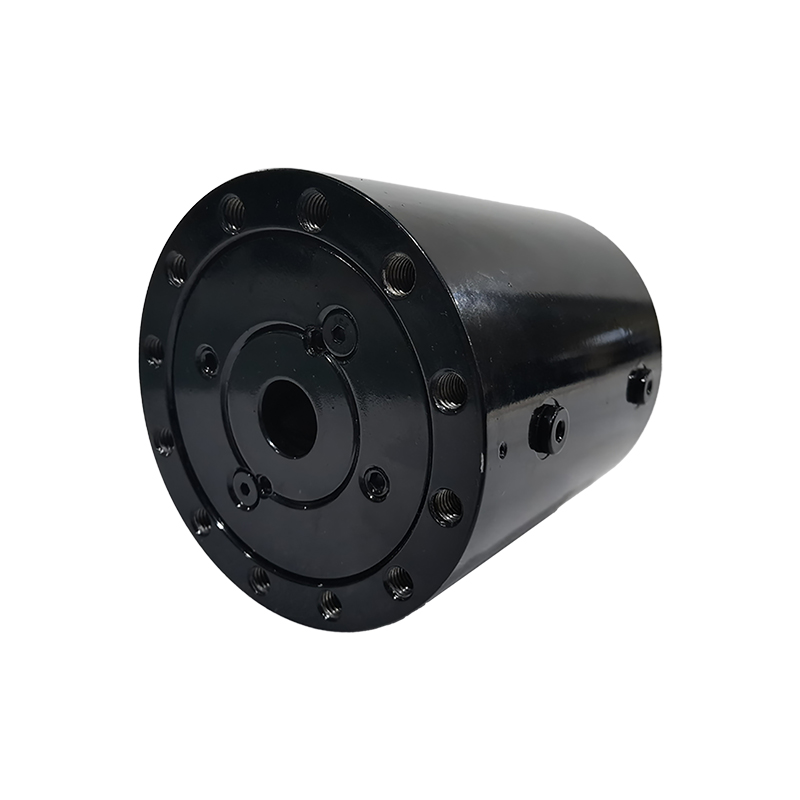

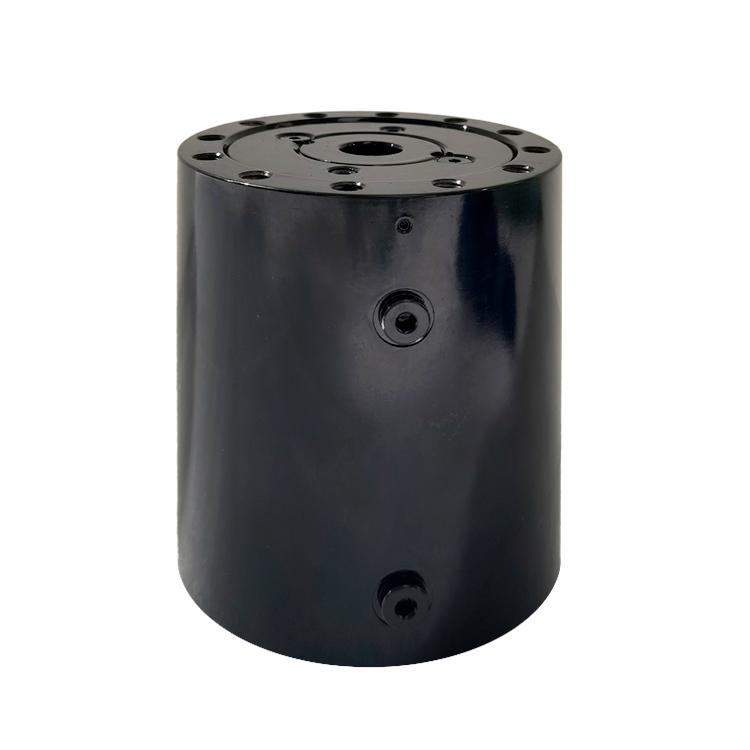

Mobile hydraulic rotary actuators offer simple and cost-effective solutions to move, support and position rotating loads in countless applications. The actuators are designed to replace multiple components and function as a rotating device, mounting bracket and bearing, all-in-one. They feature tremendous torque output and exceptional load bearing capability in compact dimensions.
