Weitai Hydraulic
1 / 4

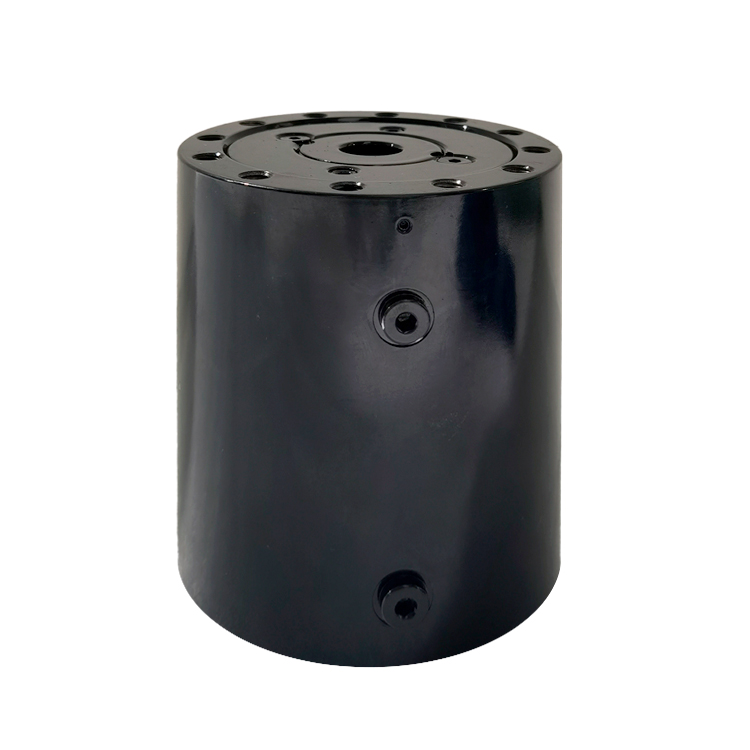

| Rotation | 180°, 360° |
| Output Mode | Front Flange |

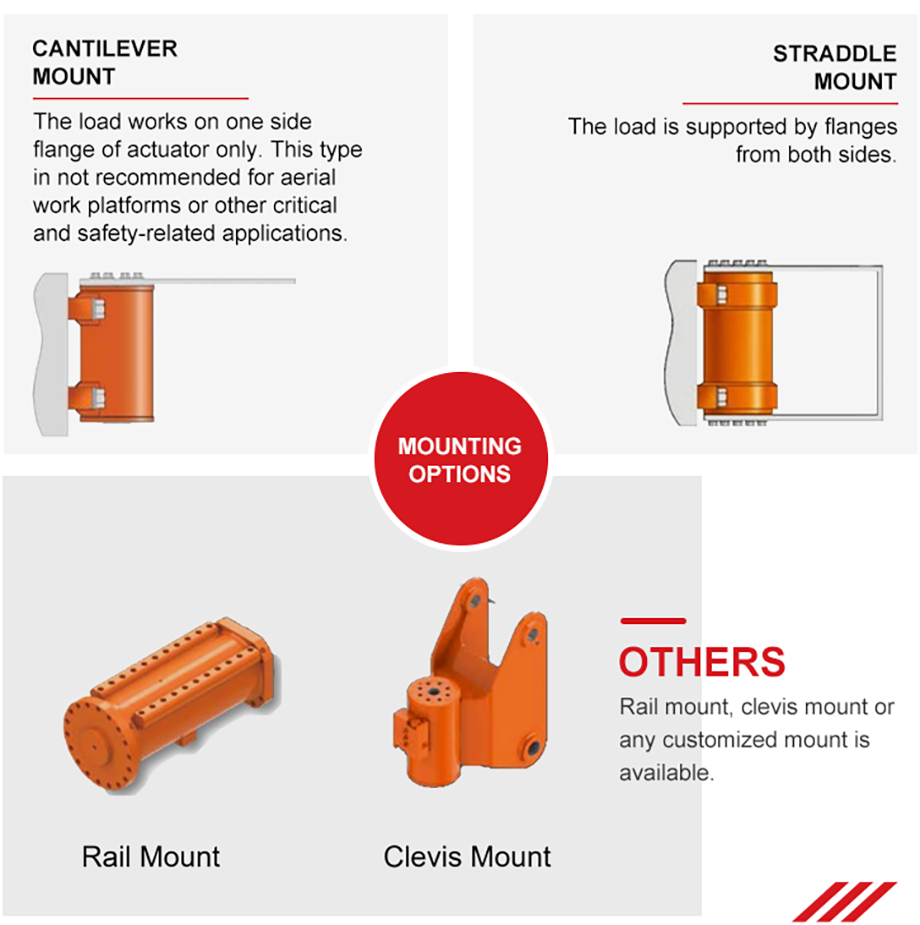

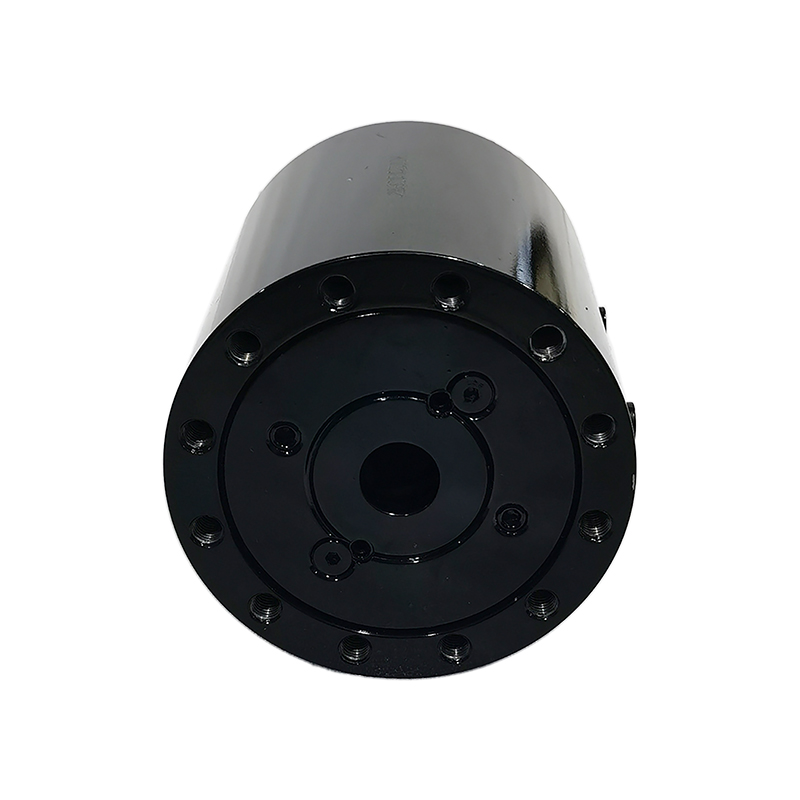

| Mounting | Flange |
| Drive Torque Nm@21Mpa | 600 |
| Holding Torque Nm@21Mpa | 1900 |
| Max Cantilever Moment Capacity Nm | 2200 |
| Radial Capacity Kg | 1850 |
| Axial Capacity Kg | 1850 |
| Displacement 180° cc | 192 |
| Displacement 360° cc | 384 |
| Weight 180° Kg | 14.2 |
| Weight 360° Kg | 19.2 |
| D1 Mounting Flange Dia mm | 102 |
| D2 Housing Dia mm | 135 |
| F1 Mounting Hole mm | M10×1.5 |
| F2 Qty of Mounting Holes | 12 |
| F3 Bolt Circle Dia of Shaft Flange mm | 80 |
| F4 Mounting Hole mm | M10×1.5 |
| F5 Qty of Mounting Holes | 12 |
| F6 Bolt Circle Dia of Endcap Flange mm | 117 |
| F7 Shaft Through-Hole Dia mm | 21.4 |
| H1 Height mm | 98 |
| L1 Length 180° mm | 156 |
| L1 Length 360° mm | 212 |
| L2 Length 180° mm | 154 |
| L2 Length 360° mm | 211 |
| L3 Distance To Valve 180° mm | 27.7 |
| L3 Distance To Valve 360° mm | 24.6 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4 |
| V1, V2 Port | ISO-11926/SAE series, size 7/16 |

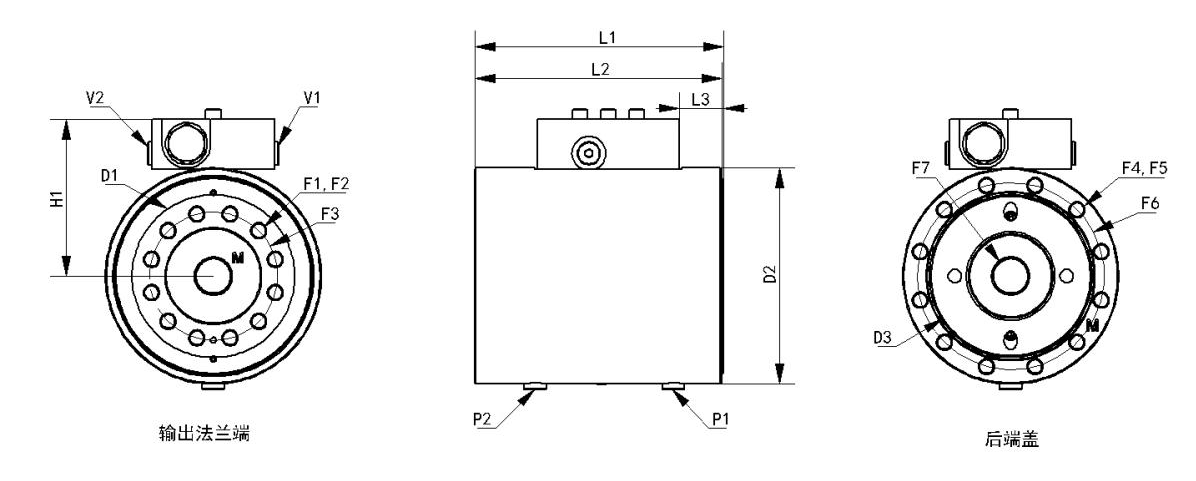

*Specification charts are for general reference only, please consult drawing for actual values and tolerances.

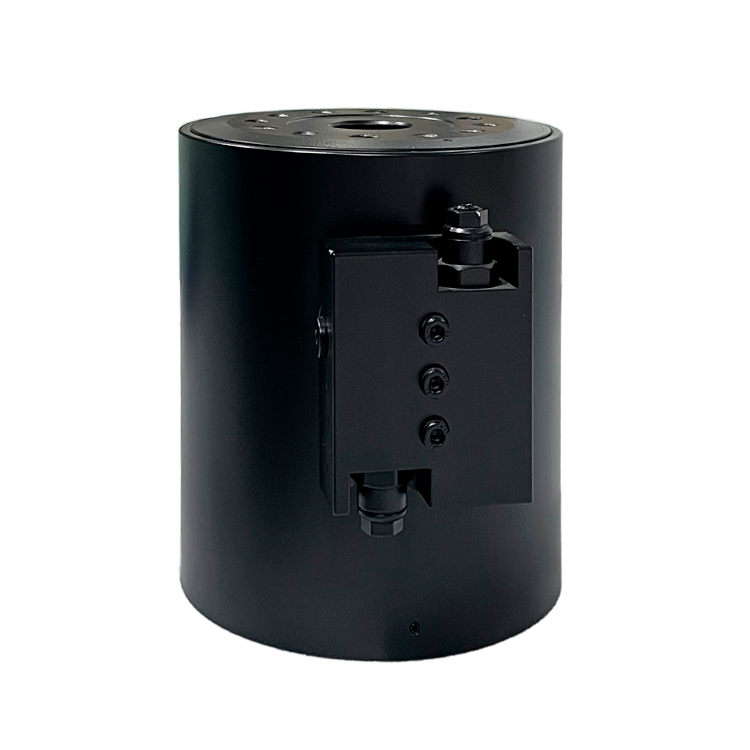

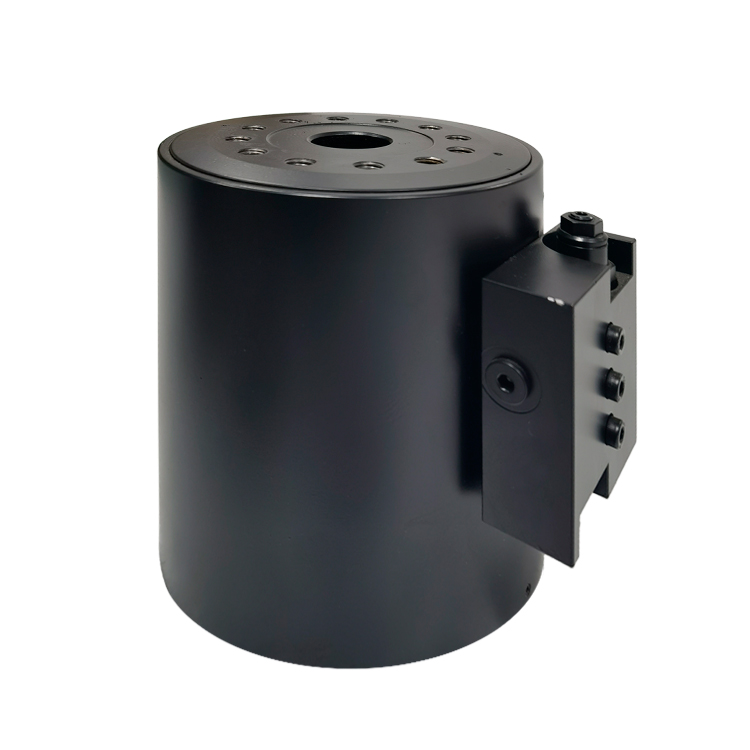

The counterbalance valve protects rotation in the event of a hydraulic line failure and protects the actuator against excessive torque loading. The counterbalance valve is optional on-demand. SUN brands or other top brands are available for different requests.

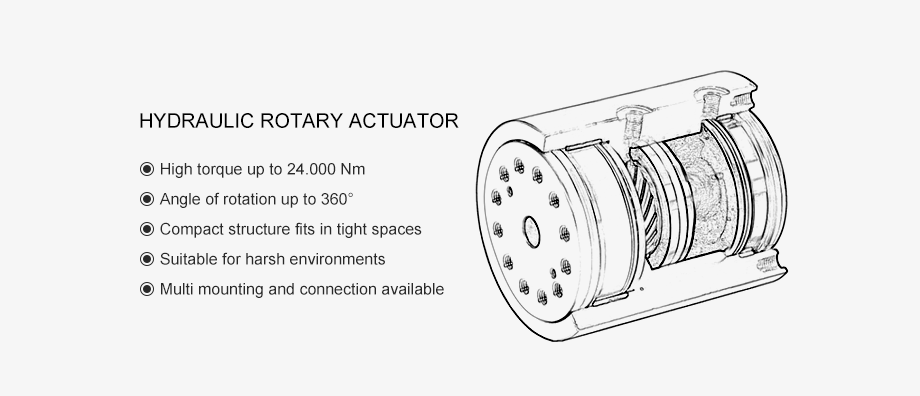

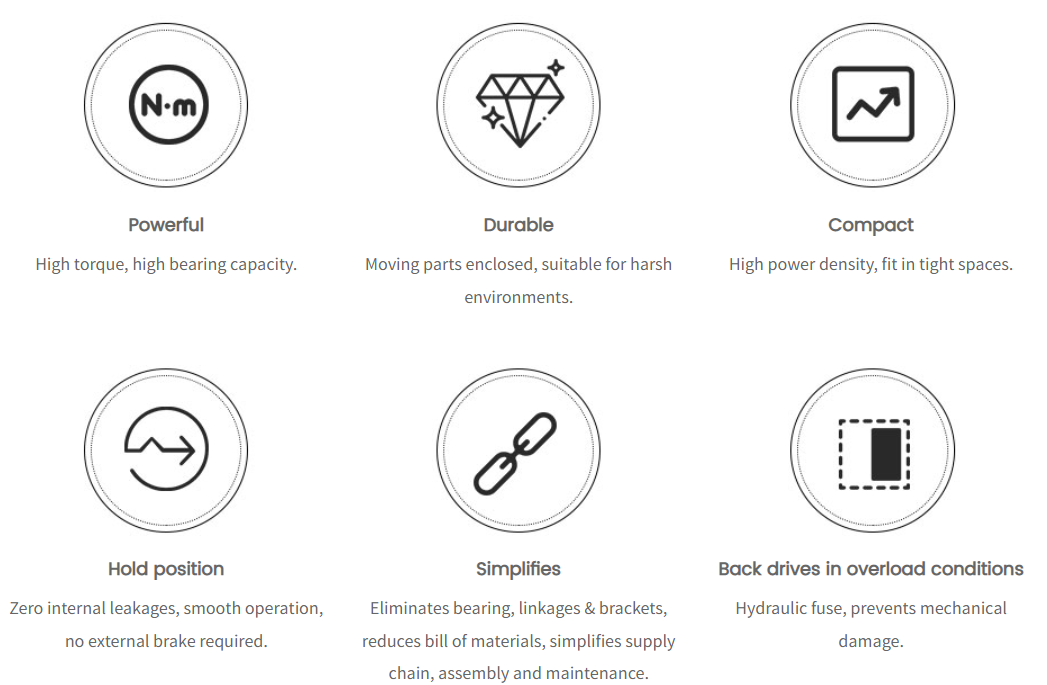

Mobile hydraulic rotary actuators offer simple and cost-effective solutions to move, support and position rotating loads in countless applications. The actuators are designed to replace multiple components and function as a rotating device, mounting bracket and bearing, all-in-one. They feature tremendous torque output and exceptional load bearing capability in compact dimensions.
