| Rotation | 180°, 360° |
| Output Mode | Front Flange, double flanges |
| Mounting | Foot |
| Drive Torque Nm@21Mpa | 10500 |
| Holding Torque Nm@21Mpa | 26000 |
| Max Cantilever Moment Capacity Nm | 29500 |
| Max Straddle Moment Capacity 180° Nm | 75100 |
| Max Straddle Moment Capacity 360° Nm | 111500 |
| Radial Capacity Kg | 6800 |
| Axial Capacity Kg | 4500 |
| Displacement 180° cc | 2680 |
| Displacement 360° cc | 5360 |
| Weight 180° Kg | 160 |
| D1 Mounting Flange Dia mm | 234 |
| D2 Housing Dia mm | 229 |
| F1 Mounting Hole Of Shaft Flange mm | M24×3 |
| F2 Qty of Shaft Flange Mounting Holes | 12 |
| F3 Bolt Circle Dia of Shaft Flange mm | 195 |
| F4 Mounting Hole Of Endcap Flange mm | M22×2.5 |
| F5 Qty of Endcap Flange Mounting Hole | 12 |
| F6 Bolt Circle Diameter of Endcap Flange | 170 |
| F7 Mounting Holes Of Housing Foot | M27 |
| H1 Height Without Counterbalance Valve mm | 276 |
| H2 Height To Centerline mm | 140 |
| H3 Foot Height mm | 105 |
| H4 Overall Height mm | 283 |
| L1 Overall Length 180° mm | 475 |
| L1 Overall Length 360° mm | 705 |
| L2 Length Without Rotating Flange 180°mm | 431 |
| L2 Length Without Rotating Flange 360° mm | 661 |
| L3 Shaft Flange To Counterbalance Valve 180° mm | 152 |
| L3 Shaft Flange To Counterbalance Valve 360° mm | 267 |
| L4 Mounting Length 180° mm | 374 |
| L4 Mounting Length 360° mm | 604 |
| L5 Shaft Flange To Mounting Hole 180°mm | 59.9 |
| W1 Mounting Width mm | 340 |
| W2 Overall Width mm | 400 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4. See drawing. |
| V1, V2 Port | ISO-11926/SAE series, size 7/16. See drawing. |
| *Specification charts are for general reference only, please consult drawing for actual values and tolerances. | |
The counterbalance valve protects rotation in the event of a hydraulic line failure and protects the actuator against excessive torque loading. The counterbalance valve is optional on-demand. SUN brands or other top brands are available for different requests.

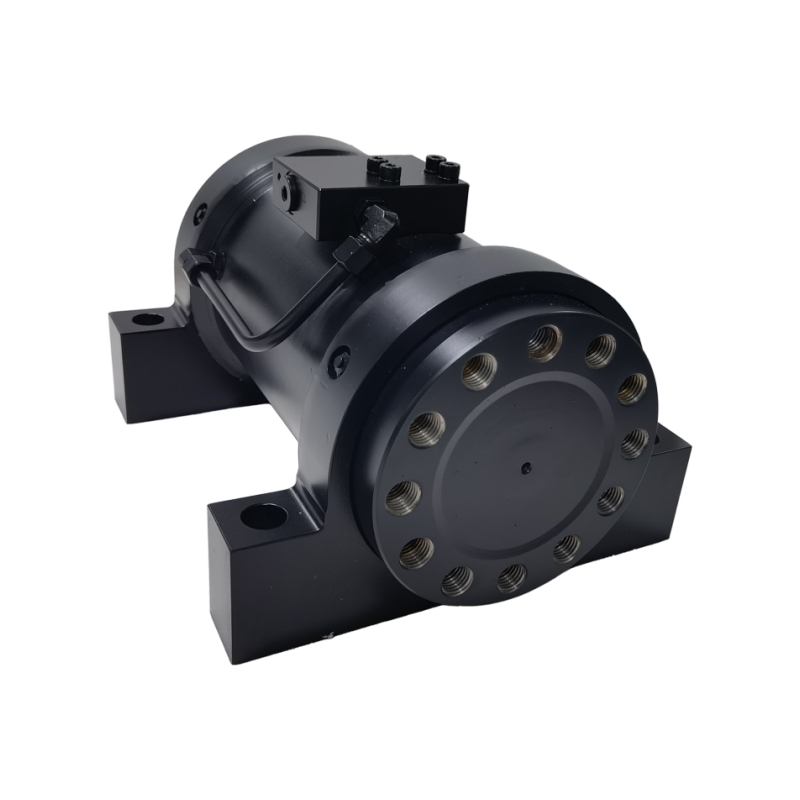

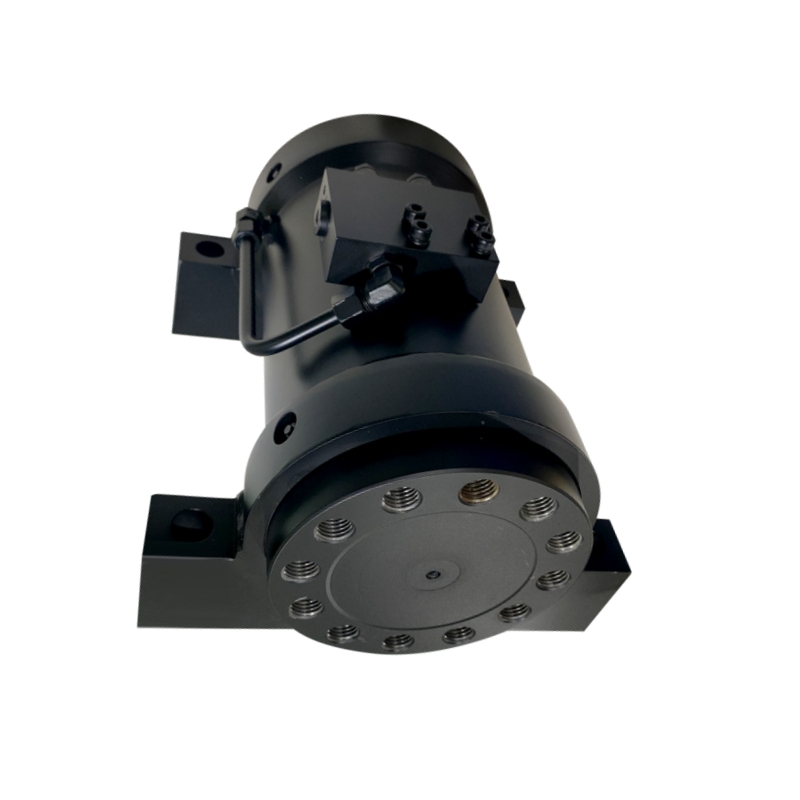

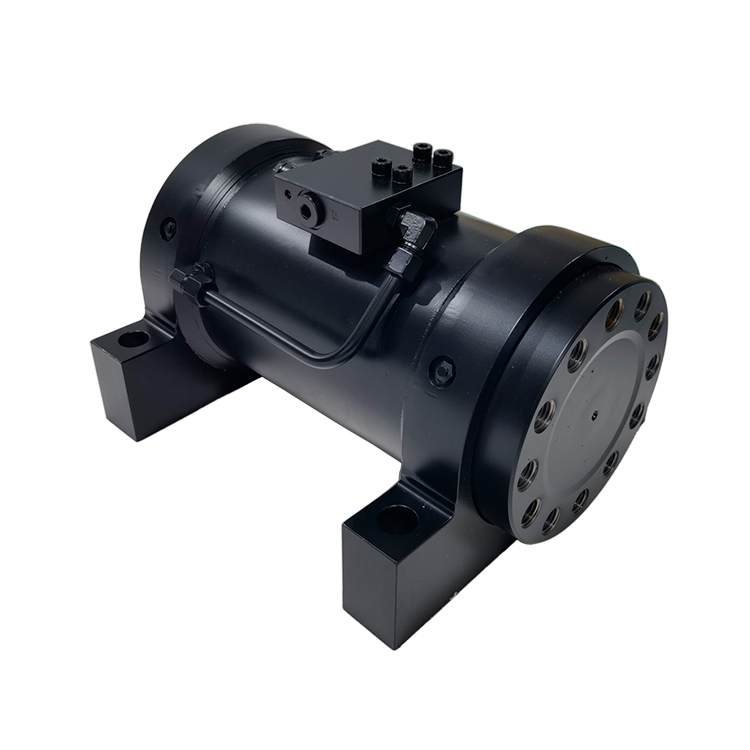

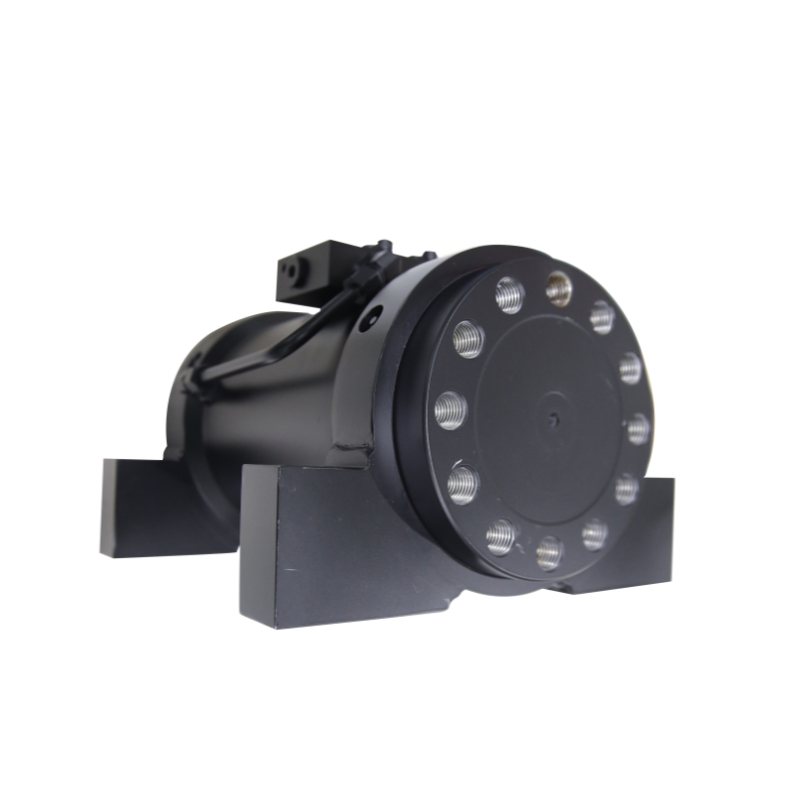

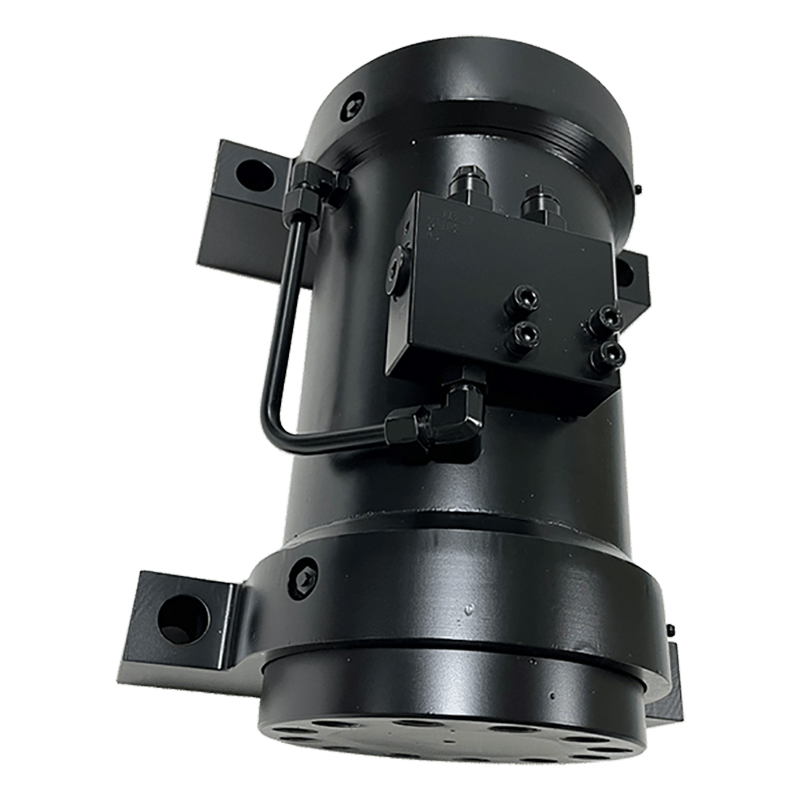

The WL30 Series hydraulic rotary actuator is designed for harsh and tough conditions. It is a heavy-duty helical rotary device with torque output from 1900Nm to 24000Nm at 21Mpa. The WL30 Series with foot mounting helical actuator has 180-degree rotation and 360-degree rotation. It is widely used for fields of agriculture equipment, construction machines, energy, marine, lifting, military, mining, truck/trailer, etc.
Torque Versus Hydraulic Pressure and Loads: The driving torque and holding torque are approximately linear with hydraulic pressure. As moment loads increase, drive torque may be reduced by up to 15%.
Standard Valve for L30-17 and L30-25 180 Degree Models: Manufactured from aluminum, the valve blocks are bolted to a flat mounting pad on the actuator housing. Three bolts secure the valve block to the actuator. The pilot ratio is 3:1. The valves are set to relieve at 3300 psi ± 300 psi (228 bar ± 21 bar).
