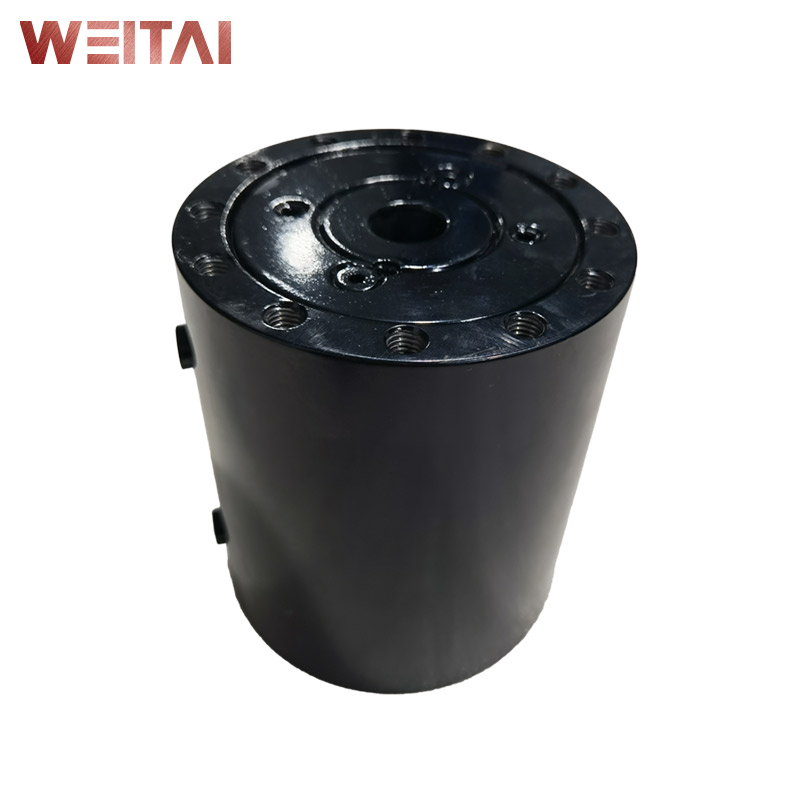

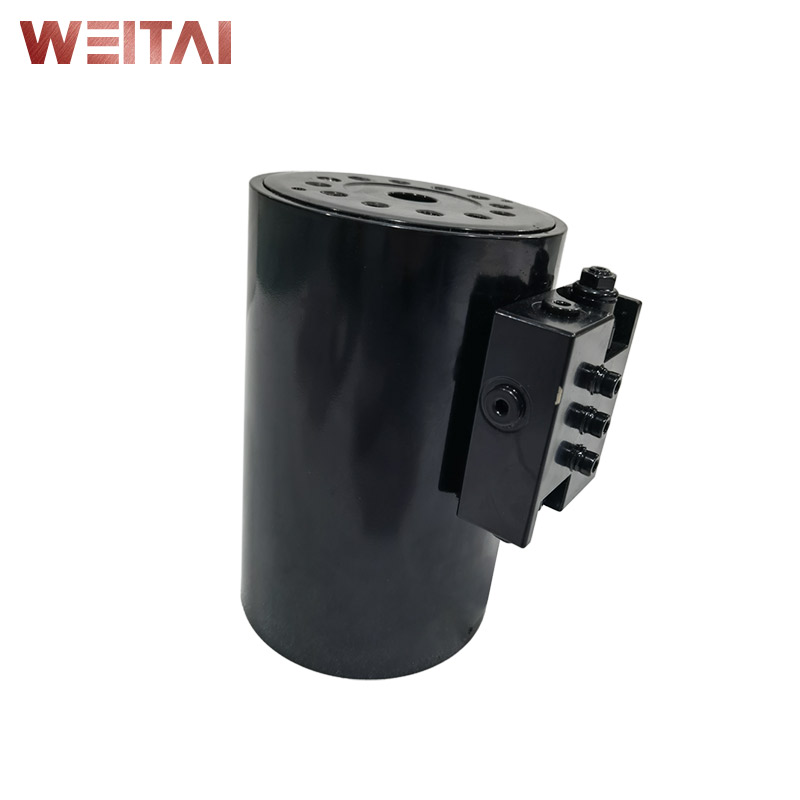

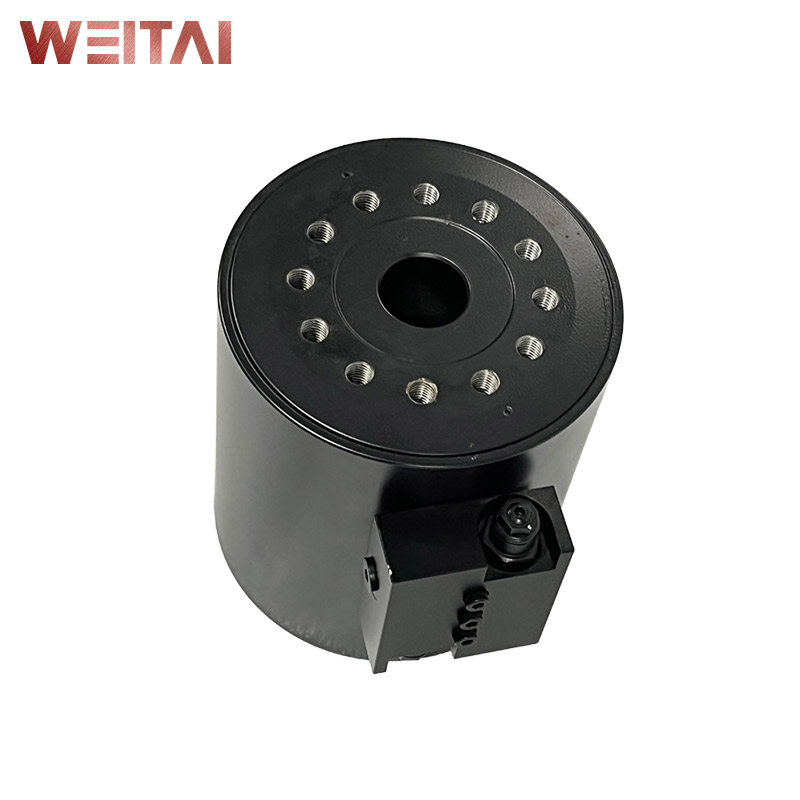

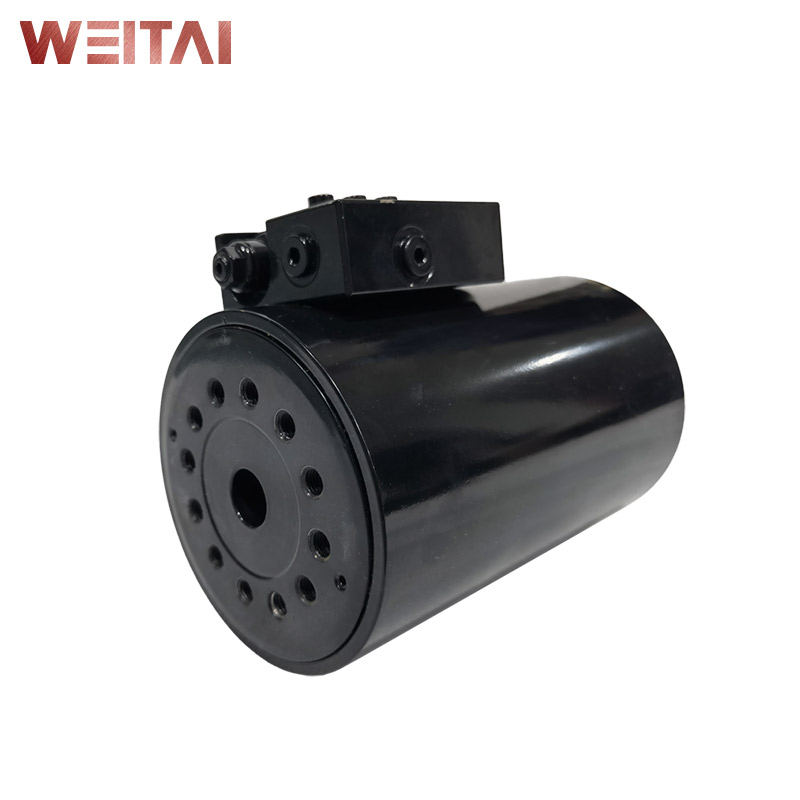

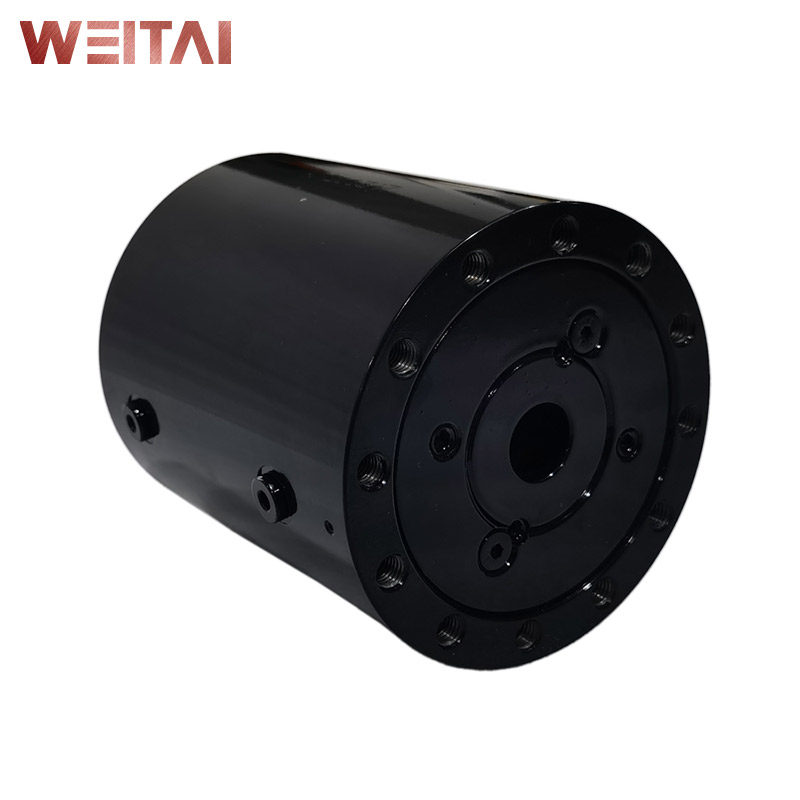

OEM 360 Degrees Hydraulic Rotary Actuator - WL10 Series Factory, Factories

Torque: Up to 2,700N·m Rotation: 180°/360° Counterbalance Valve: Optional Interchangable Brands: HELAC, HKS, and MOVECO Mounting type: Flange Warranty: 1 year

Send Inquiry

Product Description

Feature and Benefits

Powerful With a high torque up to 2,700N·m, WL10 series hydraulic rotary actuators are capable for most tasks.

Durable Made of high-hardness forged steel and performs well in harsh environments.

Compact High power density so it can work efficiently in the tiny spaces.

Holds Position Ensures zero internal leakage, operates smoothly, and eliminates the need for an external brake.

Simplifies Eliminating bearings, linkages, and brackets simplifies the bill of materials.

Backdrives in Overload Conditions A hydraulic fuse is a device that prevents mechanical damage by stopping or significantly restricting the flow of hydraulic fluid in the event of a system breach.

Specifications

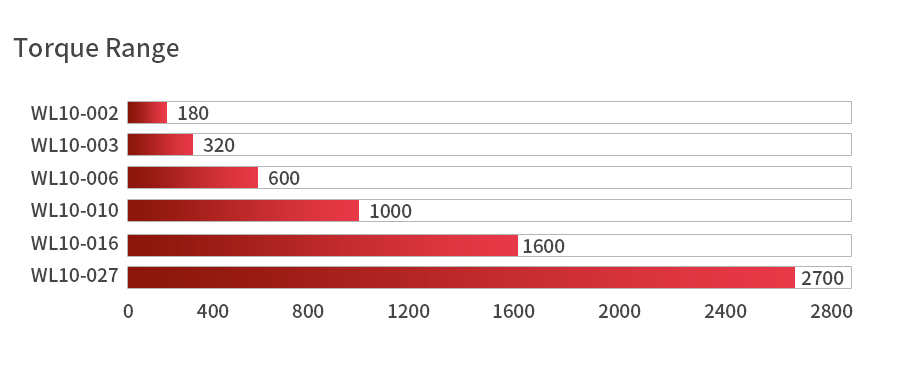

Drive Torque Comparasion of WL10 Series Hydraulic Rotary Actuators

Other Parameters

Model/Specifications	WL10-002	WL10-003	WL10-006	WL10-010	WL10-016	WL10-027
HOLDING TORQUE(N·m)	630	1200	1900	3800	5700	9400
MAX CANTILEVER MOMENT CAPACITY(N·m)	560	1000	2200	5600	9000	11200
RADIAL CAPACITY(kg)	900	1350	1850	3600	4980	6700
AXIAL CAPACITY(kg)	900	1350	1850	3600	4980	6700
DISPLACEMENT 180°(cc)	63.9	121	192	365	552	914
DISPLACEMENT 360°(cc)	-	243	384	733	1105	1829
WEIGHT 180°(kg)	6.4	10	14.2	26	43.3	57
WEIGHT 360°(kg)	-	12.8	19.2	35	54.5	83
Mounting Type	Flange	Flange	Flange	Flange	Flange	Flange
Output Mode	Front Flange	Front Flange	Front Flange	Front Flange	Front Flange	Front Flange

Note: All the parameters are tested @21Mpa.

Applications & Market

Agricultural Machines

Aerial Working Platforms

Excavators

Garbage Trucks

Drilling Machines

Construction Attachments

Energy Industry

Marine

Product Packing

Frequently Asked Questions

Q1: What is the maximum torque capacity of the WL10 series? A: The WL10 series offers a high torque output of up to 2,700 N·m, making it suitable for a wide range of heavy-duty tasks.

Q2: Are these actuators suitable for harsh outdoor environments? A: Yes, they are manufactured from high-hardness forged steel, ensuring exceptional durability and performance in demanding conditions.

Q3: How does the "Holds Position" feature work? A: The design ensures zero internal leakage, allowing the actuator to hold its position steadily without the need for an external braking system.

Q4: What industries benefit most from WL10 hydraulic rotary actuators? A: They are widely used in agriculture, construction (excavators and attachments), aerial platforms, marine applications, and the energy industry.

Q5: What mounting and output modes are available? A: The WL10 series typically features a Flange mounting type and a Front Flange output mode for secure and efficient installation.

Q6: How does the hydraulic fuse protect the system? A: It acts as a safety device that prevents mechanical damage during overload by restricting fluid flow if a system breach is detected.
