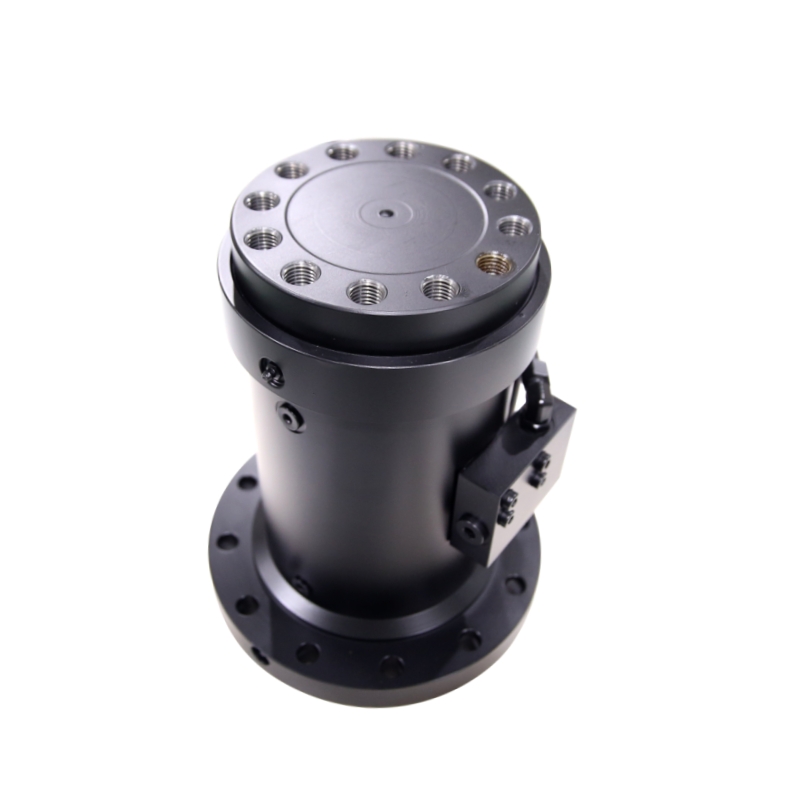

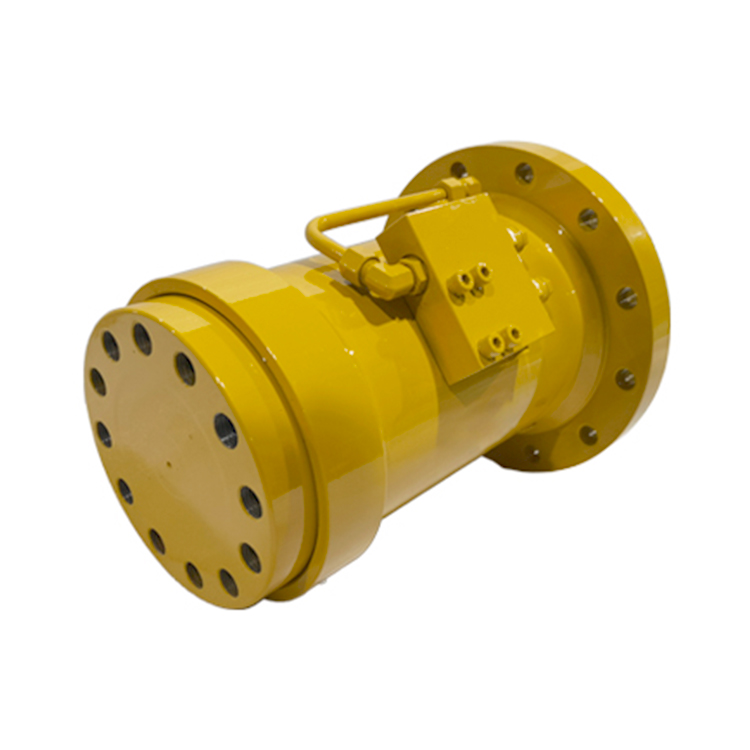

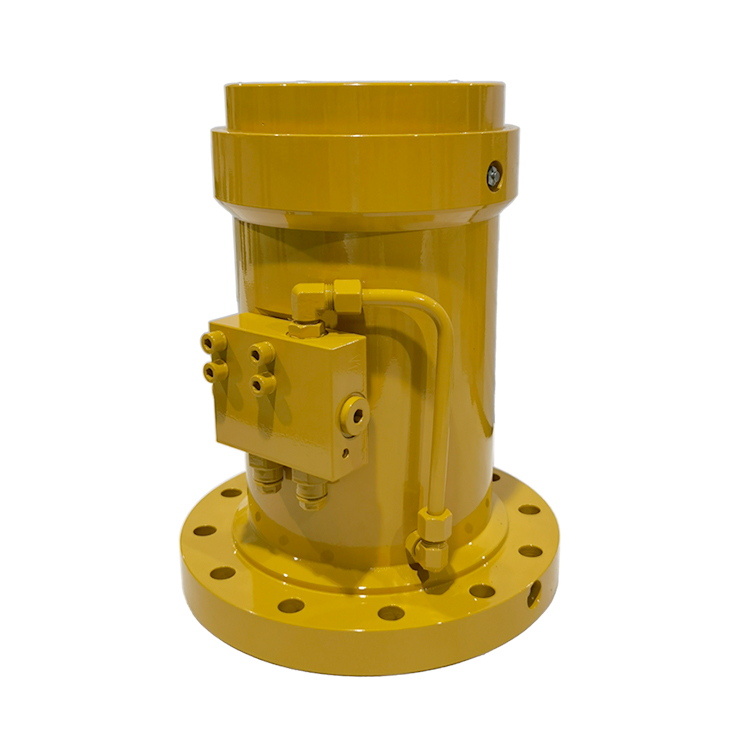

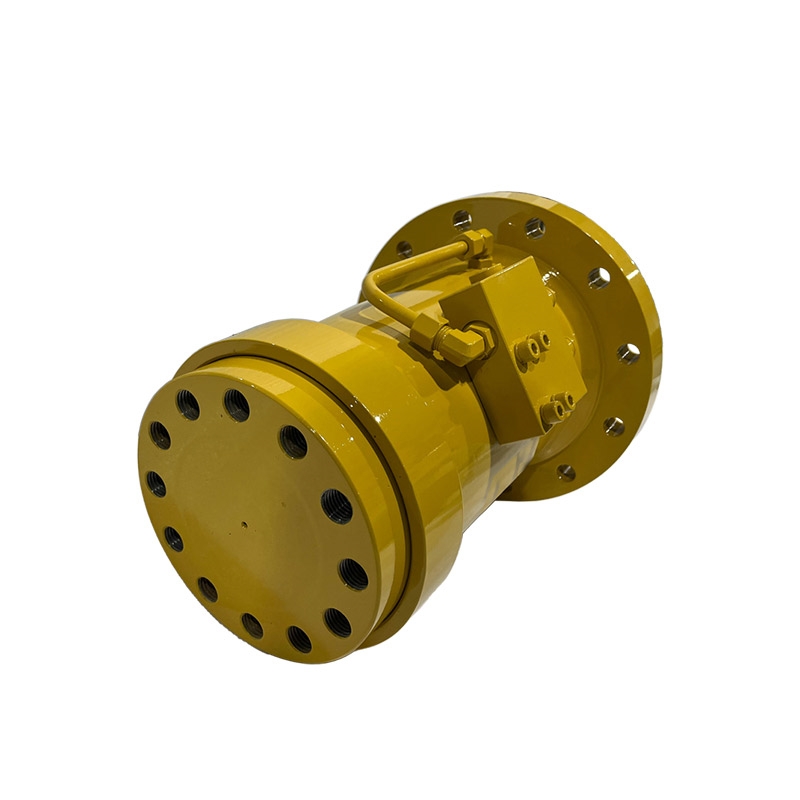

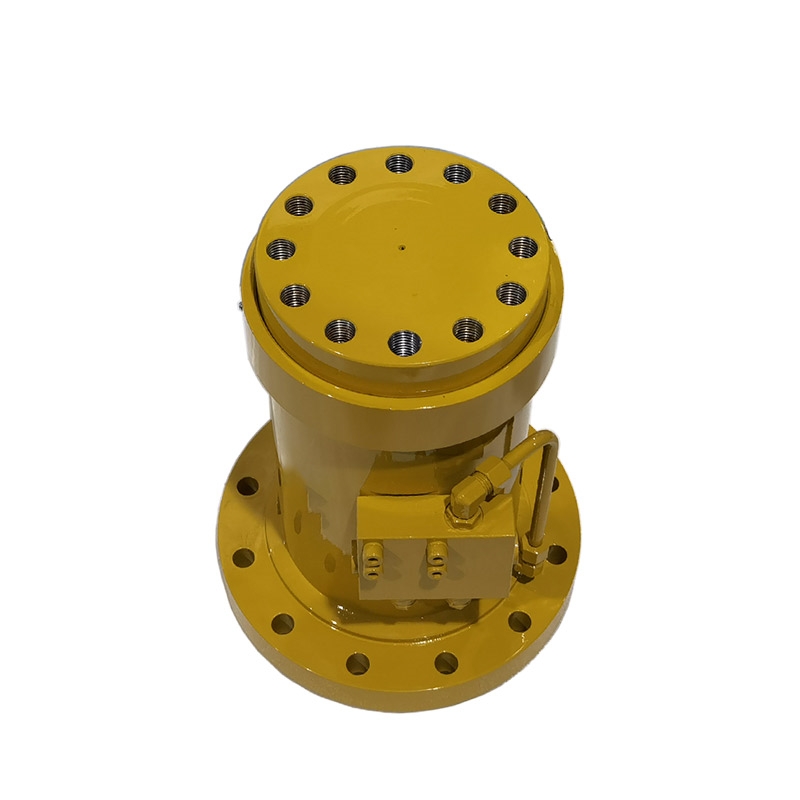

Model No.: WL30-140-180-QDYJ, WL30-140-360-QDYJ, WL30-140-180-SDYJ, WL30-140-360-SDYJ Rotation: 180°, 360° Torque: 14000Nm Counterbalance valve: Optional Interchangeable with HELAC, HKS, and MOVECO OEM quality 1-Year warranty
Send Inquiry

Product Description

WL30 Series hydraulic rotary actuator is designed for harsh environments. It is a heavy-duty helical rotary device with torque output ranging from 1,900Nm up to 24,000Nm at 21Mpa. The WL30 Series features rear flange mounting and front flange mounting types, with 180° and 360° rotation options. It is widely used in Agriculture, Construction, Energy, Marine, Material Handling, Military, Mining, and Truck/Trailer industries.
Technical Performance
Rotation180°, 360°
Output ModeFront Flange, Double Flanges
MountingFront Flange, Rear flanges
Drive Torque Nm@21Mpa14000
Holding Torque Nm@21Mpa35000
Max Cantilever Moment Capacity Nm38800
Max Straddle Moment Capacity 180° Nm98900
Max Straddle Moment Capacity 360° Nm146000
Radial Capacity Kg8200
Axial Capacity Kg5900
Displacement 180° cc3540
Displacement 360° cc7080
Weight 180° Kg220
Weight 360° Kg290
Dimensional Drawing
Hydraulic Schematic
D1 Mounting Flange Dia mm396
D2 Pilot Dia mm290
D3 Shaft And Endcap Flange Dia mm263
D4 Housing Dia mm254
F1 Mounting Hole Of Shaft Flange mmM27×3
F2 Qty of Shaft Flange Mounting Holes12
F3 Bolt Circle Dia of Shaft Flange mm215
F4 Mounting Hole Of Endcap Flange mmM24×3
F5 Qty of Endcap Flange Mounting Hole12
F6 Bolt Circle Diameter of Endcap Flange345
H1 Centerline To Valve Top mm156
L1 Overall Length 180° mm524
L1 Overall Length 360° mm776
L2 Length Without Rotating Flange 180° mm463
L2 Length Without Rotating Flange 360° mm715
L3 Shaft Flange To Counterbalance Valve 180° mm185
L3 Shaft Flange To Counterbalance Valve 360° mm308
L4 Mounting Flange Thickness mm42
L5 Shaft Flange To Mounting Flange Face mm53
P1, P2 PortISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4
V1, V2 PortISO-11926/SAE series, size 7/16
*Specification charts are for general reference only, please consult drawing for actual values and tolerances.
Safety & Protection
The counterbalance valve protects rotation in the event of a hydraulic line failure and protects the actuator against excessive torque loading. The hydraulic schematic of the optional counterbalance valve ensures operational stability. These valves are optional on-demand, with top brands available for different technical requirements.
Manufactured from aluminum, the valve blocks are bolted to a flat mounting pad on the actuator housing. Three bolts secure the valve block to the actuator. The pilot ratio is 3:1. The valves are set to relieve at 3300 psi ± 300 psi (228 bar ± 21 bar).
Common Applications
Steering
Boom positioning
Drill positioning
Platform/basket/jib rotation
Conveyor positioning
Davit rotation
Mast/hatch positioning
Access ramp deploy
Attachment rotation
Shotcrete nozzle rotation
Pipe handling
Brush positioning
Frequently Asked Questions
What is the rotation range of the WL30 Series actuators?
The series offers two standard rotation options: 180° and 360°.
What is the maximum torque capacity at 21Mpa?
The actuators provide a drive torque of 14,000 Nm and a holding torque of up to 35,000 Nm at 21Mpa.
How does the counterbalance valve improve safety?
It protects the rotation mechanism during hydraulic line failures and prevents damage from excessive torque loading.
What are the typical relief settings for the valve blocks?
The valves are factory-set to relieve at 3300 psi ± 300 psi (approximately 228 bar ± 21 bar).
What materials are used for the valve blocks?
The valve blocks are high-quality manufactured from aluminum for durability and performance.
What mounting options are available for this series?
The WL30 Series supports both front flange and rear flange mounting configurations to suit various installation needs.
