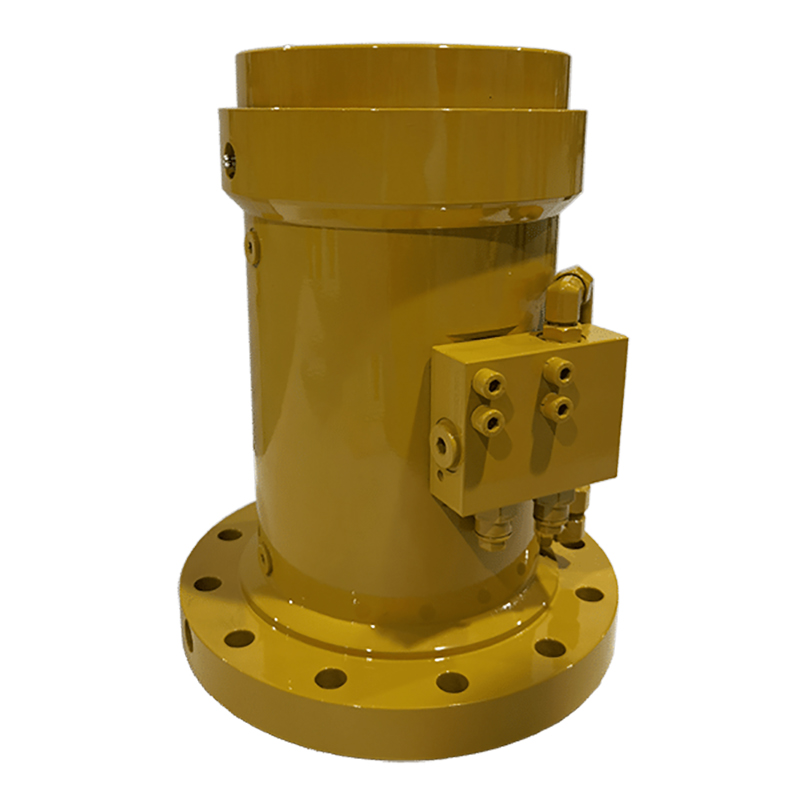

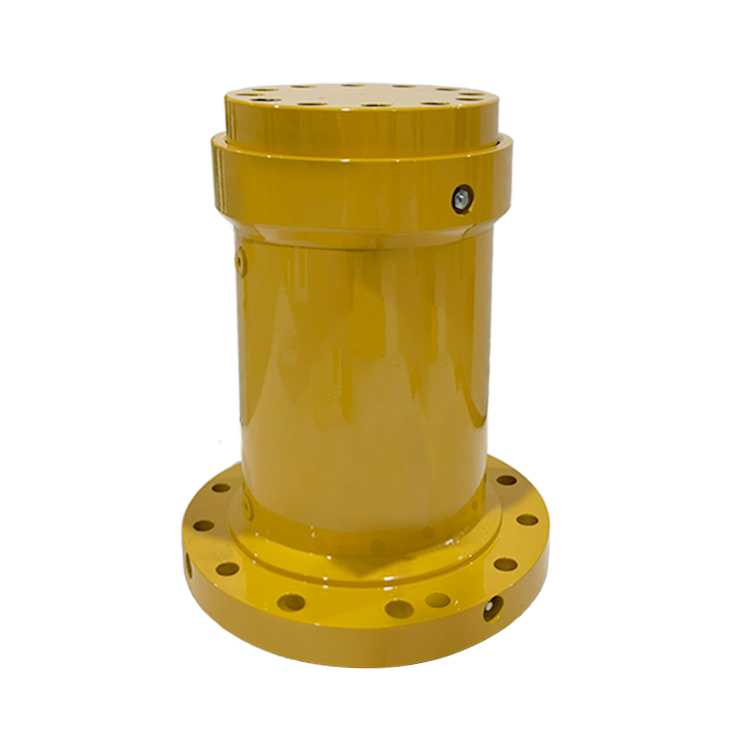

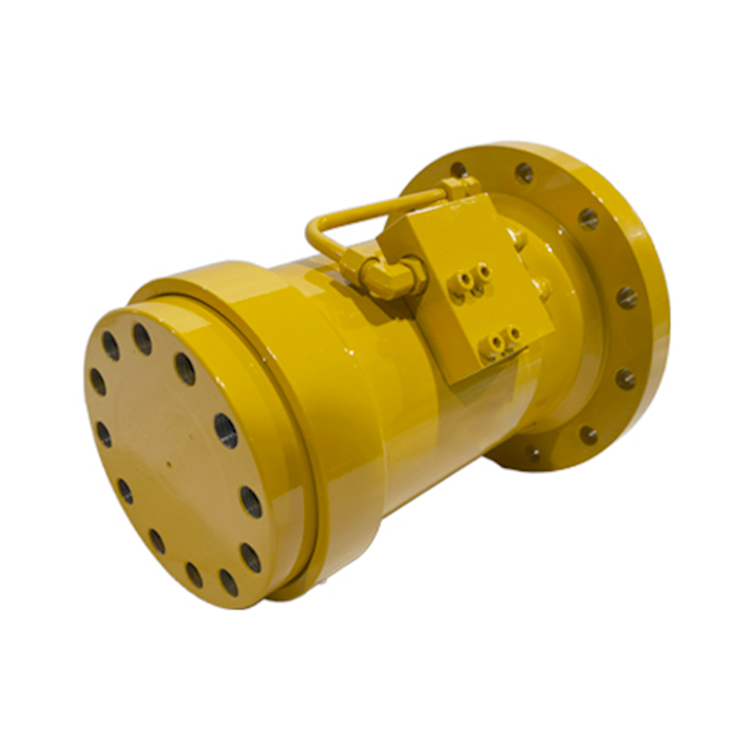

| Parameter | Value |
|---|---|
| Rotation | 180°, 360° |
| Output Mode | Front Flange, Double Flanges |
| Mounting | Front Flange, Rear flanges |
| Drive Torque Nm@21Mpa | 10500 |
| Holding Torque Nm@21Mpa | 26000 |
| Max Cantilever Moment Capacity Nm | 29500 |
| Max Straddle Moment Capacity 180° Nm | 75100 |
| Max Straddle Moment Capacity 360° Nm | 111500 |
| Radial Capacity Kg | 6800 |
| Axial Capacity Kg | 4500 |
| Displacement 180° cc | 2680 |
| Displacement 360° cc | 5360 |
| Weight 180° Kg | 160 |
| Weight 360° Kg | 200 |
| Dimension Description | Value (mm / Qty) |
|---|---|
| D1 Mounting Flange Dia | 355 |
| D2 Pilot Dia | 260 |
| D3 Shaft And Endcap Flange Dia | 234 |
| D4 Housing Dia | 229 |
| F1 Mounting Hole Of Shaft Flange | M24×3 |
| F2 Qty of Shaft Flange Mounting Holes | 12 |
| F3 Bolt Circle Dia of Shaft Flange | 195 |
| F4 Mounting Hole Of Endcap Flange | M22×2.5 |
| F5 Qty of Endcap Flange Mounting Hole | 12 |
| F6 Bolt Circle Diameter of Endcap Flange | 310 |
| H1 Centerline To Valve Top | 144 |
| L1 Overall Length 180° | 475 |
| L1 Overall Length 360° | 705 |
| L2 Length Without Rotating Flange 180° | 431 |
| L2 Length Without Rotating Flange 360° | 661 |
| L3 Shaft Flange To Counterbalance Valve 180° | 152 |
| L3 Shaft Flange To Counterbalance Valve 360° | 267 |
| L4 Mounting Flange Thickness | 40 |
| L5 Shaft Flange To Mounting Flange Face | 40 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4 |
| V1, V2 Port | ISO-11926/SAE series, size 7/16 |
*Specification charts are for general reference only, please consult drawing for actual values and tolerances.

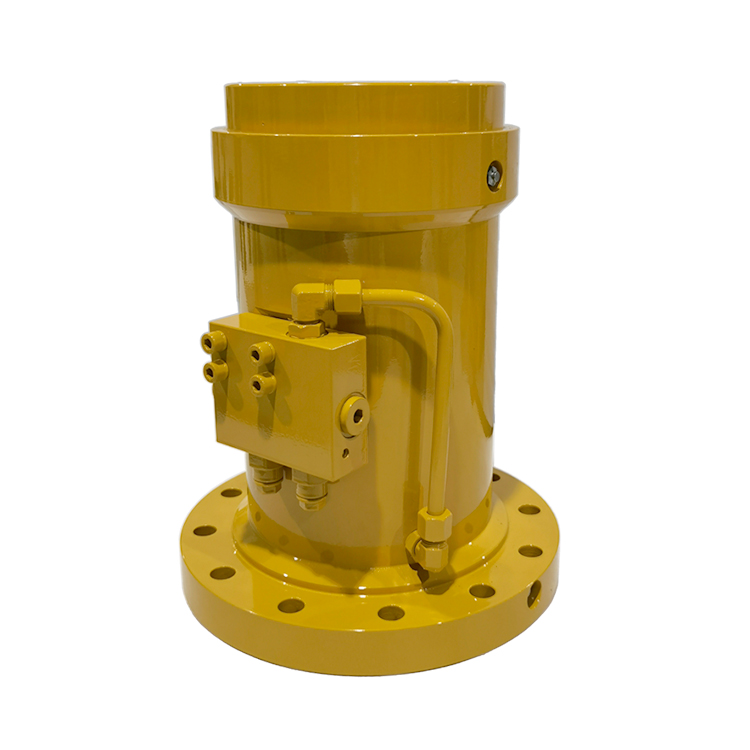

The counterbalance valve protects rotation in the event of a hydraulic line failure and protects the actuator against excessive torque loading. This component is optional on-demand, with top brands available for different requests.
Agriculture, Energy, Military, Truck/Trailer, Shotcrete nozzle rotation, Pipe handling, Brush positioning, etc.
