| Rotation | 180°, 360° |
| Output Mode | Front Flange, Double Flanges |
| Mounting | Front Flange, Rear flanges |
| Drive Torque Nm@21Mpa | 1900 |
| Holding Torque Nm@21Mpa | 4900 |
| Max Cantilever Moment Capacity Nm | 5200 |
| Max Straddle Moment Capacity 180° Nm | 13400 |
| Max Straddle Moment Capacity 360° Nm | 19200 |
| Radial Capacity Kg | 1800 |
| Axial Capacity Kg | 1400 |
| Displacement 180° cc | 492 |
| Displacement 360° cc | 980 |
| Weight 180° Kg | 34.5 |
| Weight 360° Kg | 45.5 |
| D1 Mounting Flange Dia mm | 200 |
| D2 Pilot Dia mm | 150 |
| D3 Shaft And Endcap Flange Dia mm | 139 |
| D4 Housing Dia mm | 140 |
| F1 Mounting Hole Of Shaft Flange mm | M12×1.75 |
| F2 Qty of Shaft Flange Mounting Holes | 12 |
| F3 Bolt Circle Dia of Shaft Flange mm | 115 |
| F4 Mounting Hole Of Endcap Flange mm | M10×1.5 |
| F5 Qty of Endcap Flange Mounting Hole | 12 |
| F6 Bolt Circle Diameter of Endcap Flange | 175 |
| H1 Centerline To Valve Top mm | 99.1 |
| L1 Overall Length 180° mm | 298 |
| L1 Overall Length 360° mm | 427 |
| L2 Length Without Rotating Flange 180° mm | 261 |
| L2 Length Without Rotating Flange 360° mm | 392 |
| L3 Shaft Flange To Counterbalance Valve 180° mm | 75.2 |
| L3 Shaft Flange To Counterbalance Valve 360° mm | 149 |
| L4 Mounting Flange Thickness mm | 25.2 |
| L5 Shaft Flange To Mounting Flange Face mm | 27 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4 |
| V1, V2 Port | ISO-11926/SAE series, size 7/16 |
| *Specification charts are for general reference only, please consult drawing for actual values and tolerances. | |

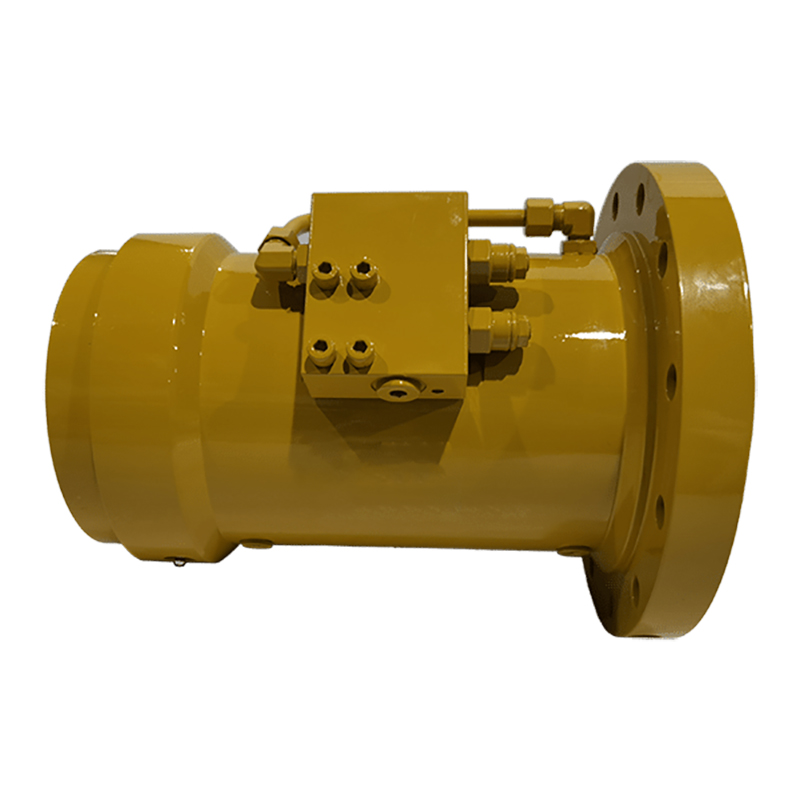

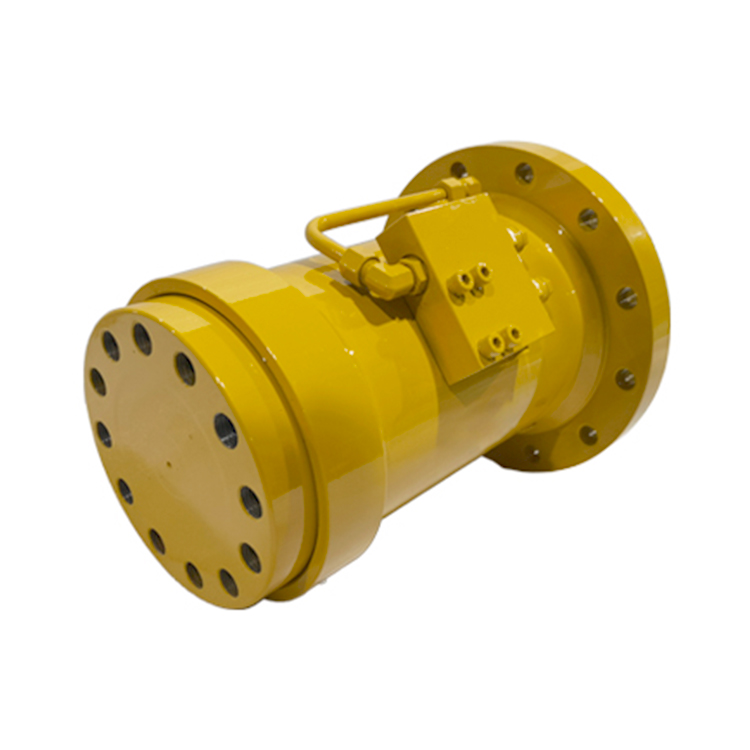

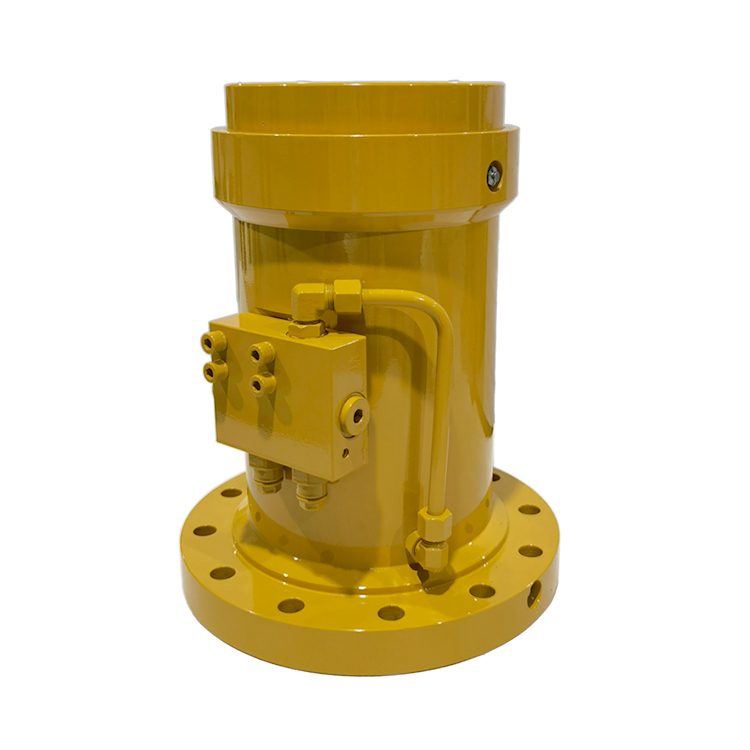

Counterbalance Valve Protection: The counterbalance valve protects rotation in the event of a hydraulic line failure and protects the actuator against excessive torque loading. The counterbalance valve is optional on-demand. SUN brands or other top brands are available for different requests.

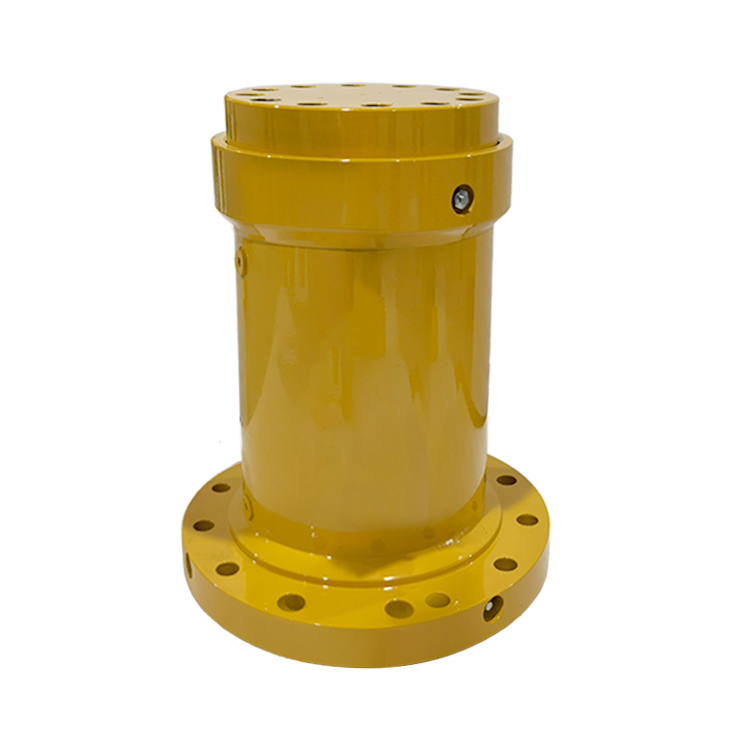

Industrial Series Overview: The WL30 Series hydraulic rotary actuator is designed for harsh environments. It is a heavy-duty helical rotary device with torque output from 1900Nm to 24000Nm at 21Mpa. The series features rear flange and front flange mounting types, with rotations of 180 degrees and 360 degrees.
The load is mounted to the shaft flange and is supported at only one end of the shaft. Cantilever mounting is not recommended for aerial work platforms or other critical and safety-related applications.
The load is supported at both ends of the shaft, providing superior stability for high-moment applications.
Torque Versus Hydraulic Pressure and Loads: The driving torque and holding torque are approximately linear with hydraulic pressure. As moment loads increase, drive torque may be reduced by up to 15%.
